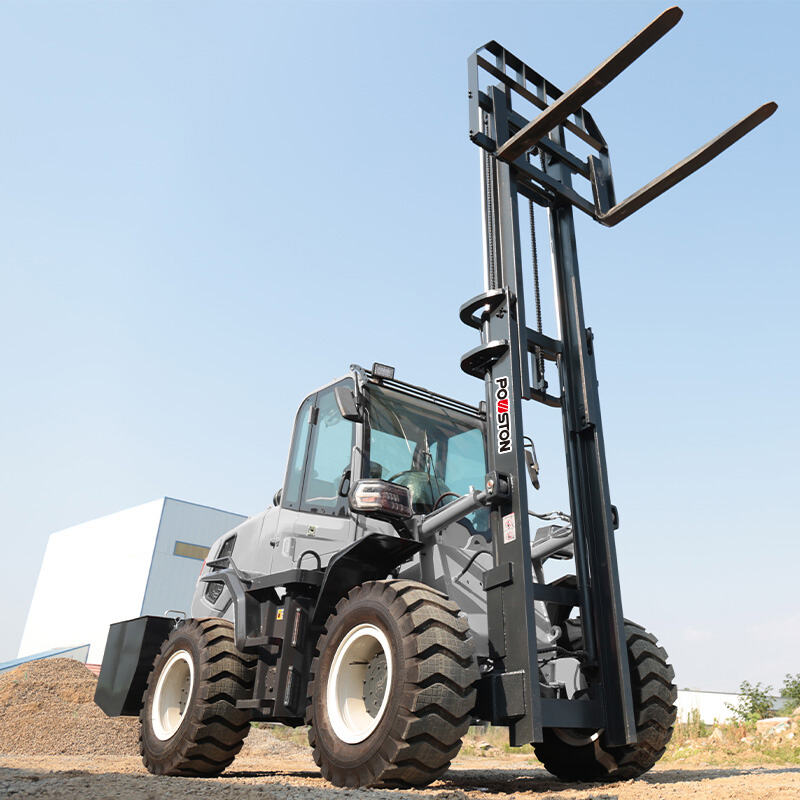

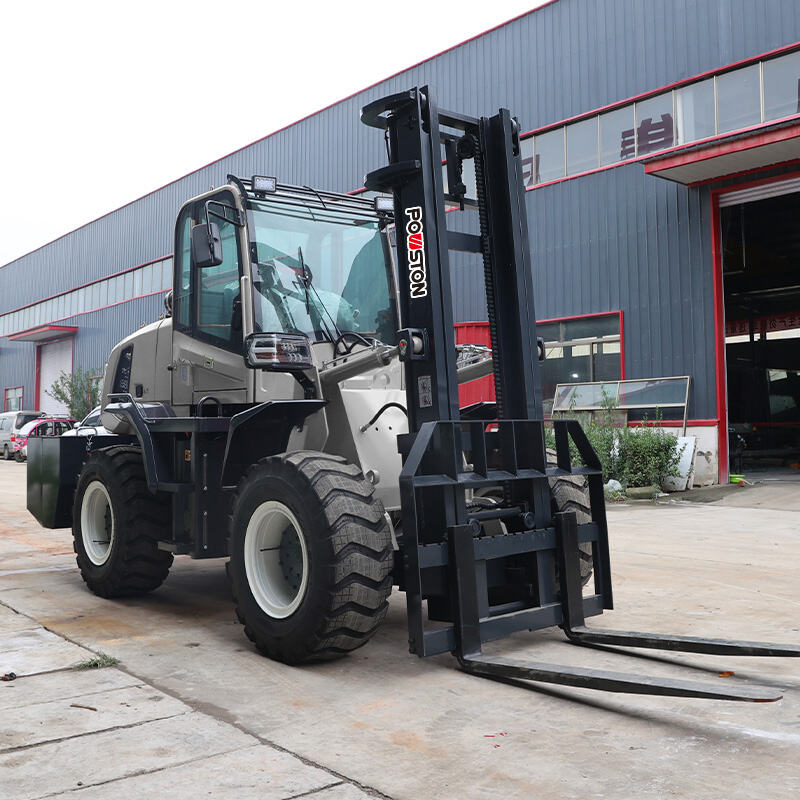

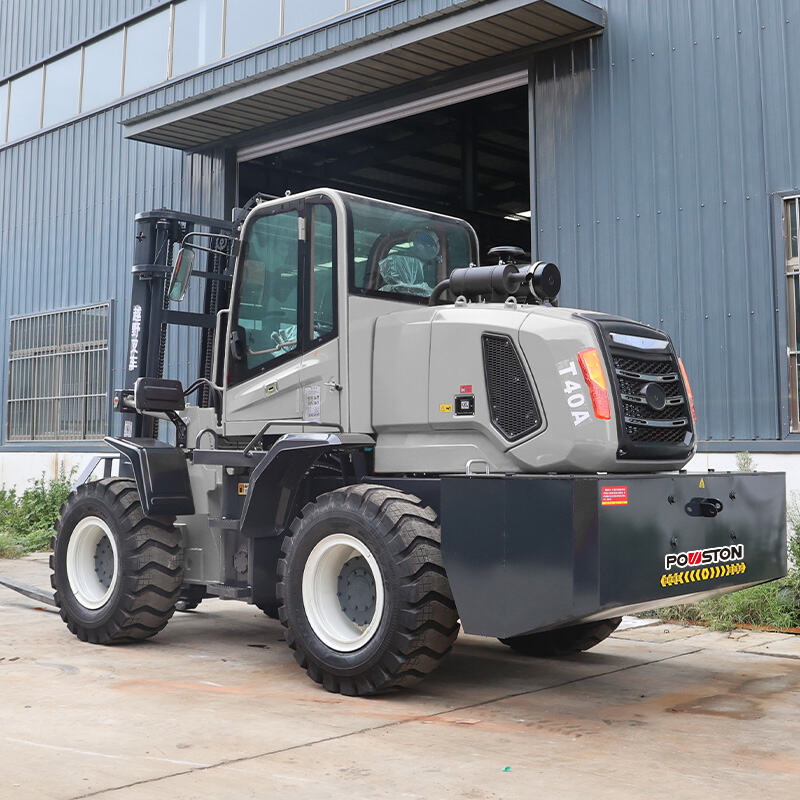

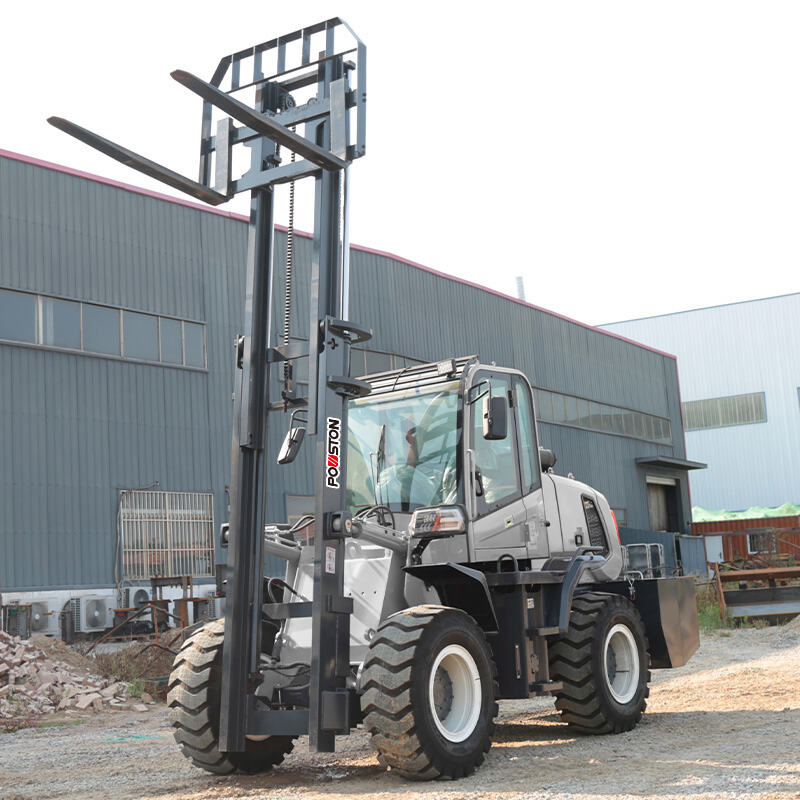

PTF-40 Rough Terrain Forklift

This 4-ton rough terrain forklift is engineered for tough outdoor environments. Its high-power diesel engine provides steady strong power with ample reserve and low fuel use. Boasting high ground clearance, 4-wheel drive, differential lock and thick off-road tires, it easily navigates muddy, gravelly, sloped and mountainous rough ground. The reinforced steel frame supports the 3.5-ton rated load, balancing high lifting capacity, off-road capability and long-term reliability for rugged material handling tasks.

Overview Details Parameters Application Scenarios Assistive Devices FAQ

Product Overview

High-Power Engine & Strong Power Performance: Fitted with a heavy-duty large horsepower diesel engine, with sufficient torque reserve, strong climbing power and stable power output. It avoids power attenuation under heavy load and complex terrain conditions, ensuring continuous and reliable operation while reducing comprehensive fuel consumption.

All-Terrain Passability, Smooth Operation on Rough Roads: Supported by 4WD full-time drive and intelligent differential lock system, matching ultra-high ground clearance and anti-slip large-pattern off-road tires. It effectively solves slipping and trapping problems on muddy, gravel, rugged slope and uneven roads, realizing free and flexible driving and stable operation in all harsh terrains.

Product Details

Hydraulic Cylinder

Radiator

Engine

Axles

Counterweight

Operating System

Tires

Accessories

Performance & Parameters

Specification
Rated Lifting Weight	4000kg
Rated Lifting Height	4000-7000mm
Engine Brand	Yunnei 4100 Turbocharged
Rated Power	65kw
Turning Radius	3700mm
Climbing Ability	≤35°
Load Center Distance	600mm
Max. Travel Speed	42km/h
Wheelbase	2400mm
Main Dimensions
Overall Dimensions(LWH)	400018002700mm
Fork Length	1520mm(Optional)
Mast Front Ground Clearance	300-380mm
Wheelbase Center Ground Clearance	350mm
Mast width	180mm
Performance
Drive Mode	Four-Wheel Drive
Gearbox	280 Dual High-Low Speed Hydraulic Torque Converter
Axle	Large Wheel-end Cast Steel Axle
Tire	16/70-20 Reinforced

Application Scenarios

The 4-ton rough terrain forklift is widely applicable to all kinds of unstructured and harsh working scenarios where ordinary forklifts cannot operate normally. It is perfectly suitable for outdoor construction sites with rugged roads, gravel yards and muddy foundations, rural farmland renovation, orchard and nursery material handling, mountain forest timber transportation and stacking. It also adapts to mine yard bulk material handling, port open-area cargo turnover, highway and railway engineering construction, as well as field temporary material transportation and loading operations. It can maintain stable and efficient working performance in rainy muddy roads, rugged slopes and soft uneven grounds, fully meeting the all-weather and all-terrain operation needs of outdoor engineering, agriculture, forestry and mining industries.

Can Be Equipped with Assistive Devices

FAQ

Q: Are your machines certified for international markets?

A: All our construction and handling equipment complies with mainstream international standards, ensuring reliable quality and smooth customs clearance worldwide.

Q: Can you provide customized solutions for different projects?

A: Yes, we support customized configuration, color, logo and attachments to fully match your working conditions and project requirements.

Q: How about your after-sales and technical support?

A: We provide global after-sales service, long-term spare parts supply and professional technical support to ensure stable and efficient operation of your equipment.

Q: What is your production and delivery capacity?

A: With standardized production lines and mature logistics channels, we guarantee fast lead times and safe, on-time delivery to any destination worldwide.

Q: Do you offer wholesale and dealer cooperation?

A: We warmly welcome global distributors, dealers and rental companies for long-term strategic cooperation with exclusive support policies.
