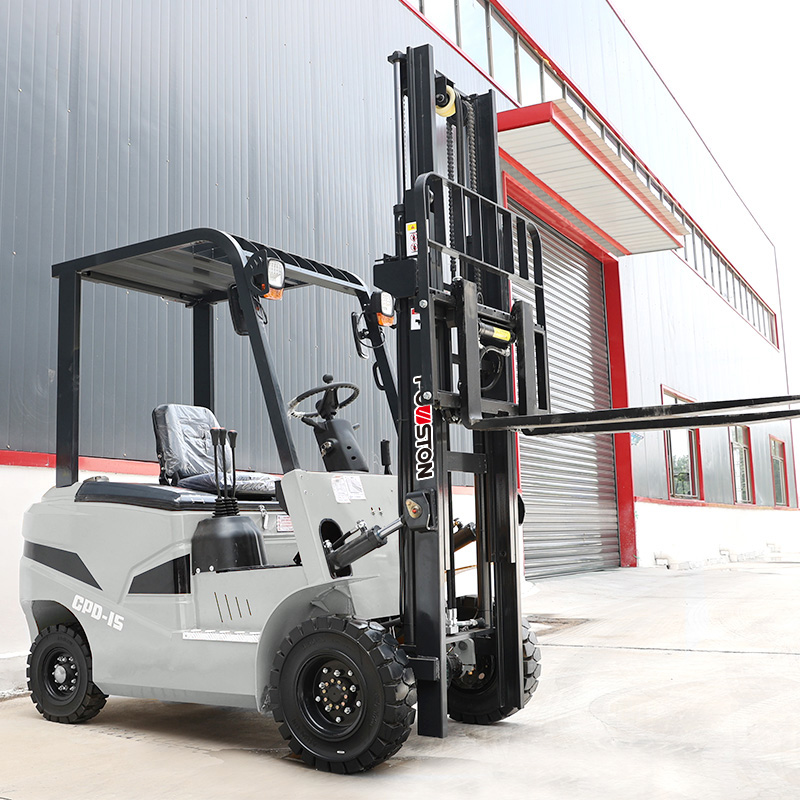

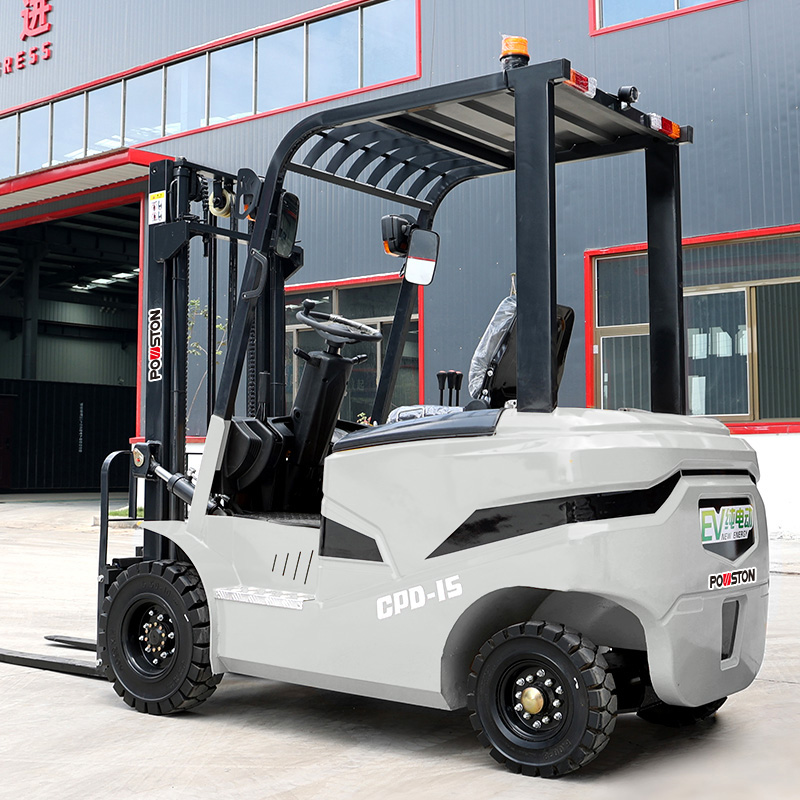

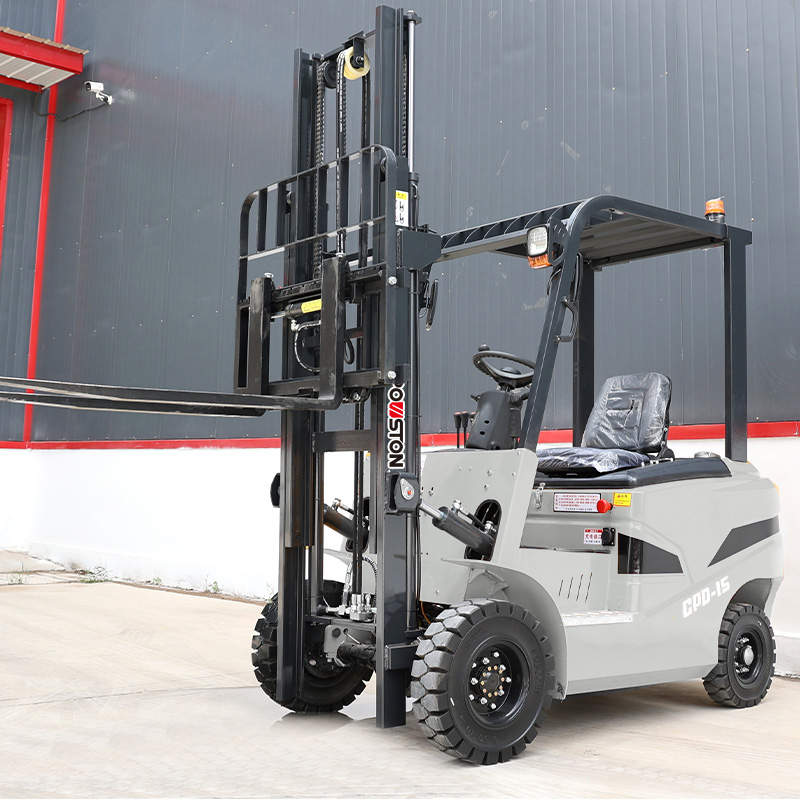

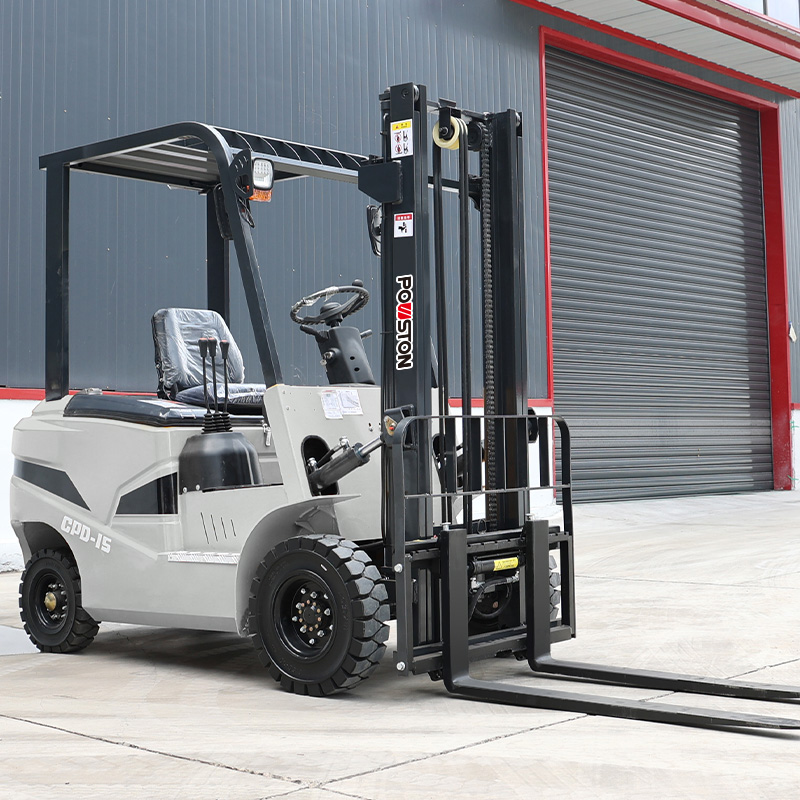

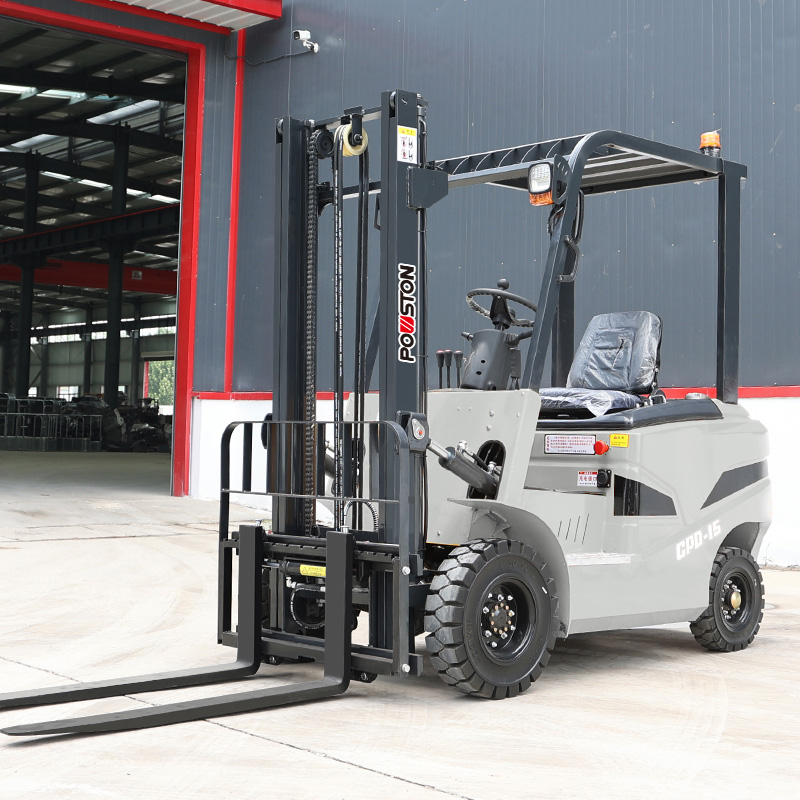

CPD-15 Electric Forklift: Eco-friendly, quiet and efficient for indoor handling, delivering stable performance, zero emissions and smooth operation in warehouse working scenarios.

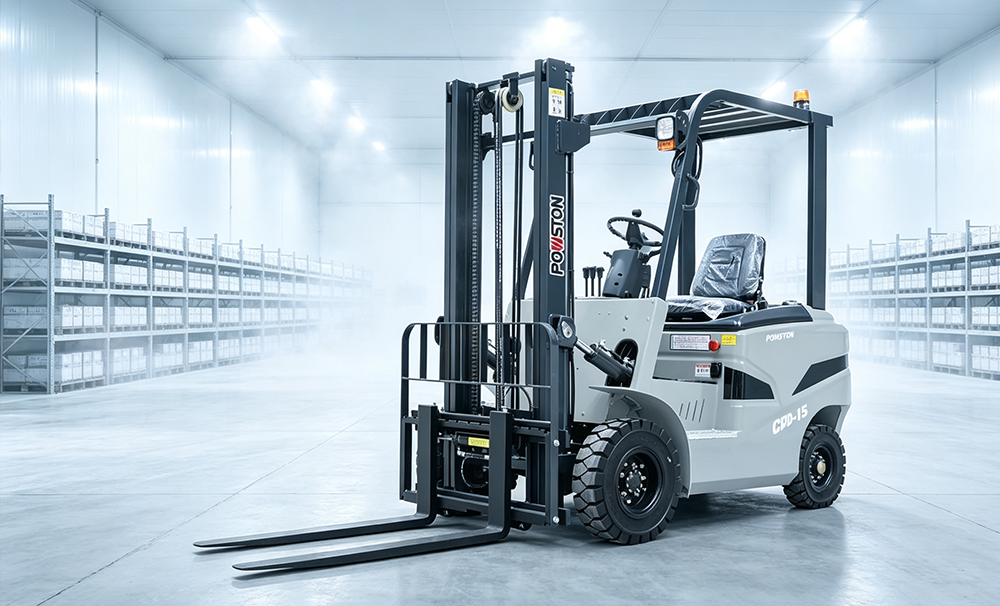

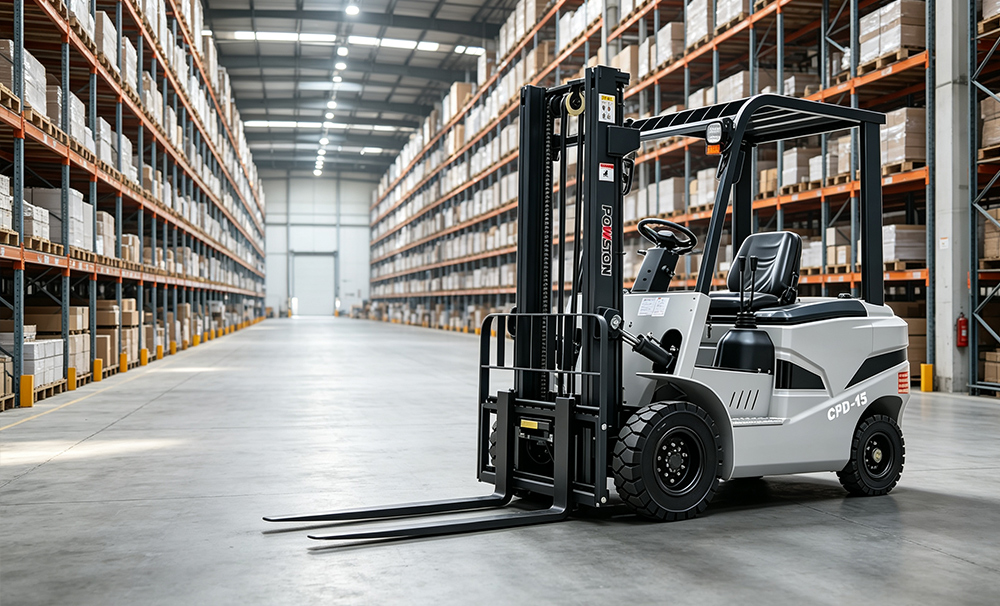

Zero-emission operation with ultra-low noise, perfect for indoor warehouse and cold storage use.
High-efficiency power system ensures low energy consumption and minimal long-term maintenance costs.
Small turning radius and precision controls for easy handling in narrow aisles and confined spaces.
| Specification | |
| Rated Lifting Weight | 1500kg |
| Rated Lifting Height | 3000-6000mm |
| Load Center Distance | 500mm |
| Mast Tilt Angle(Forward/Backward) | 12°/15° |
| Minimum Turning Radius | 2210mm |
| Climbing Ability(Empty/Full) | 13°/15° |
| Minimum Mast Height | 2130mm |
| Free Lift Height | 140mm |
| Maximum Mast Height | 3960mm |

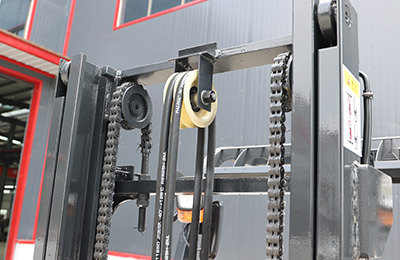

| Mast Type | 10# National Standard Section Steel |
| Main Dimensions | |
| Overall Dimensions(L*W*H) | 2250*1210*2100mm |
| Standard Fork Length | 1220mm |
| Minimum Ground Clearance Of Mast | 110mm |
| Minimum Ground Clearance Of Frame | 120mm |
| Overhead Guard Height | 2100mm |

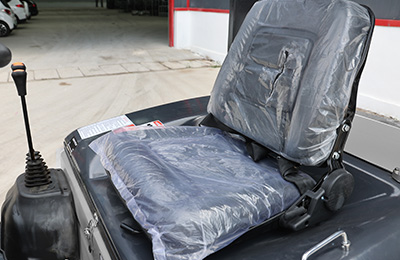

| Seat Height | 970mm |
| Rear And Rear Wheelbase | 1500mm |
| Tire Spacing | Front Track 1020mm, Rear Track 870mm |
| Overhang | 430mm |
| Performance | |

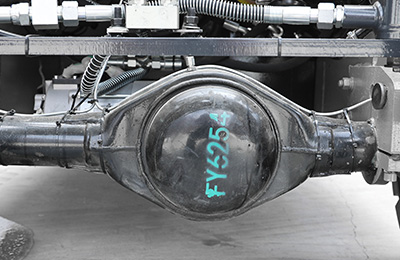

| Front Axle | Dedicated Aluminum Housing Integrated Axle |

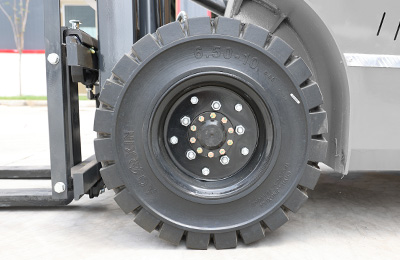

| Tires | Front Tire 650-10, Rear Tire 500-8 |
| Rear Axle | Steel Plate Bridge |
| Braking Method | Hydraulic Brake |
| Drive Motor Controller | 3kw |
| Lift Motor Controller | 3kw |
| Operating Voltage | 60V |

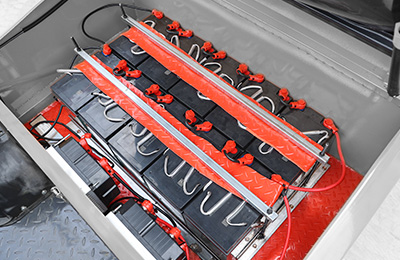

| Standard Battery Capacity | 5*70AH |
| Overall Weight | 2400kg |
