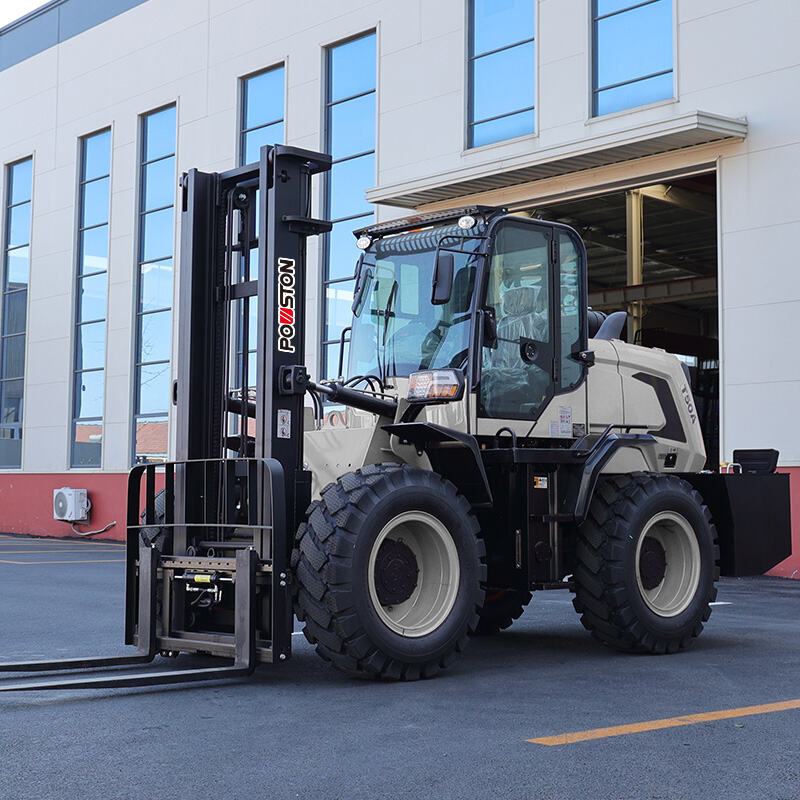

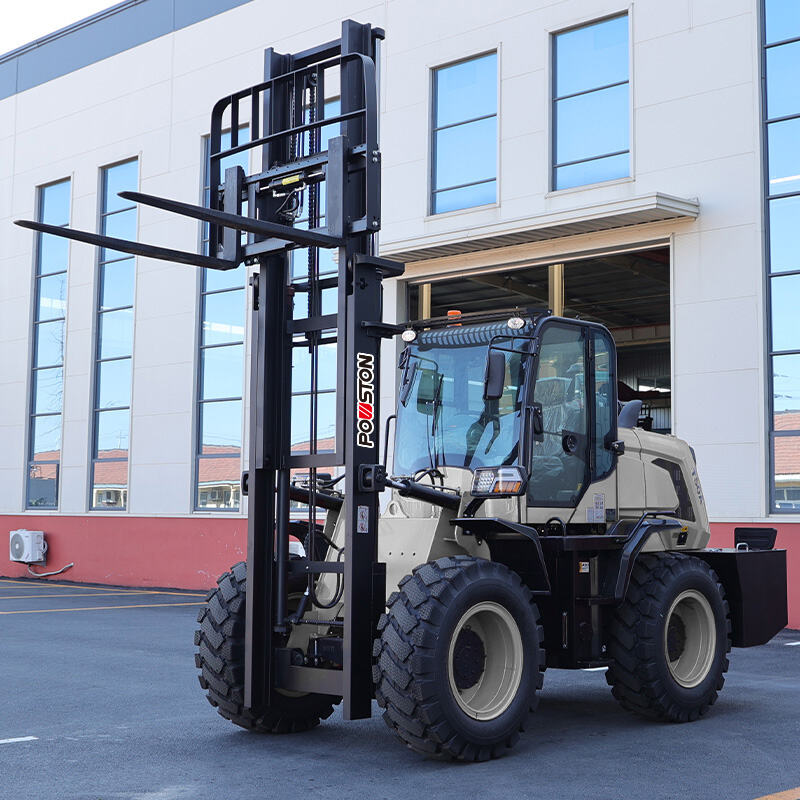

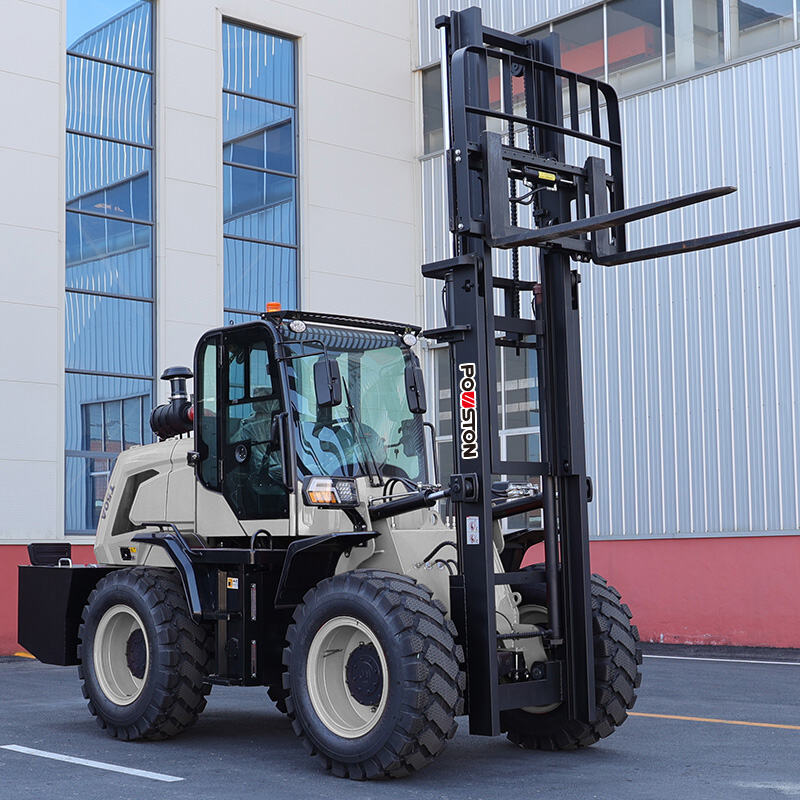

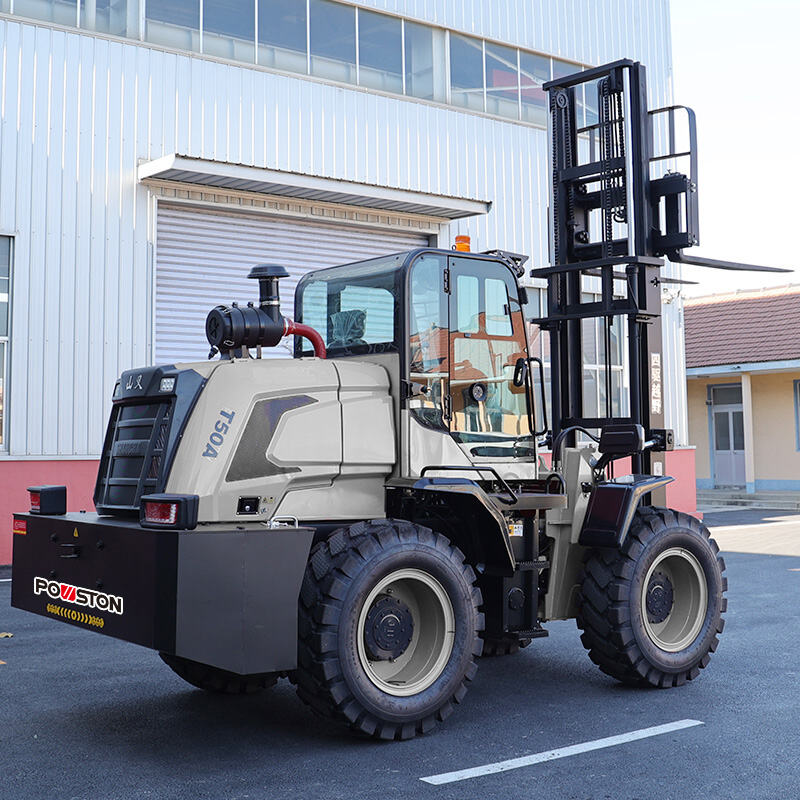

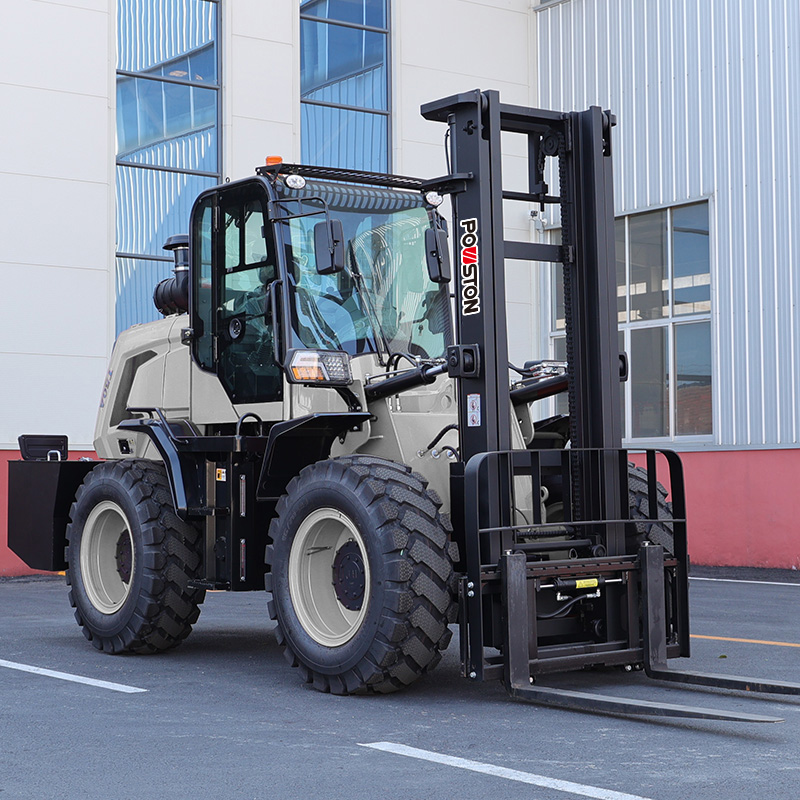

PTF-50 Rough Terrain Forklift

This 5-ton rough terrain forklift is heavy-duty gear for heavy loads and tough sites. Its high-horsepower diesel engine generates strong torque and stable power for full-load climbing and long high-intensity work. With a high-clearance 4WD chassis, differential lock and deep-tread tires, it works reliably on mud, gravel, slopes and rough ground. The thick steel frame and sturdy mast deliver solid 5-ton lifting capacity with great durability for harsh outdoor handling tasks.

Overview Details Parameters Application Scenarios Assistive Devices FAQ

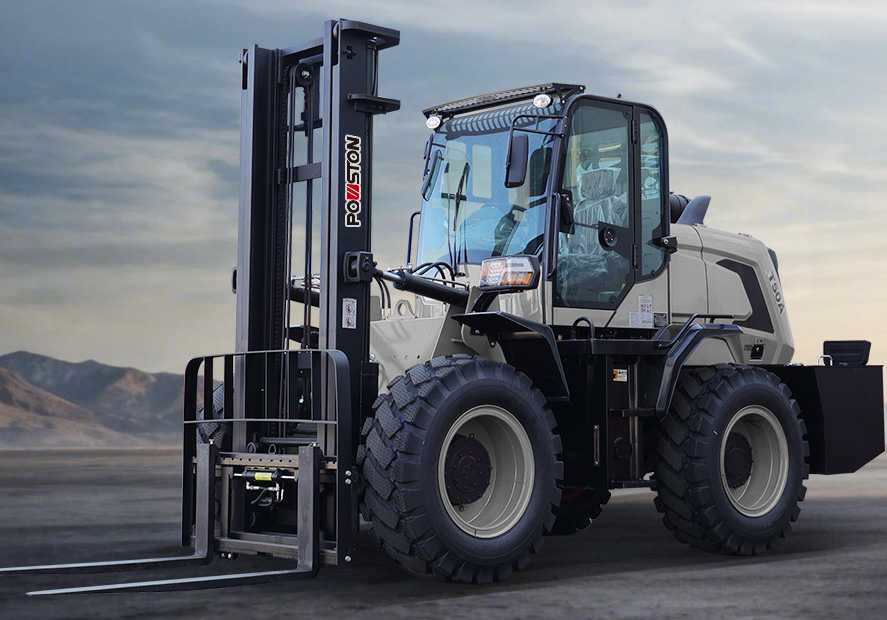

Product Overview

Equipped with a large-displacement high-horsepower diesel engine, it provides super strong torque output and excellent climbing performance. It maintains stable power even under full load and complex terrain conditions, effectively solving the problem of insufficient power of ordinary forklifts in heavy-duty operations, with lower fuel consumption and higher working efficiency.

Full-time 4WD + professional differential lock technology, paired with high ground clearance and anti-skid thickened off-road tires. The forklift can freely cross muddy, slippery, gravel and rugged slope roads, realizing zero obstacle driving and stable lifting operation in various harsh and un-paved working conditions.

Product Details

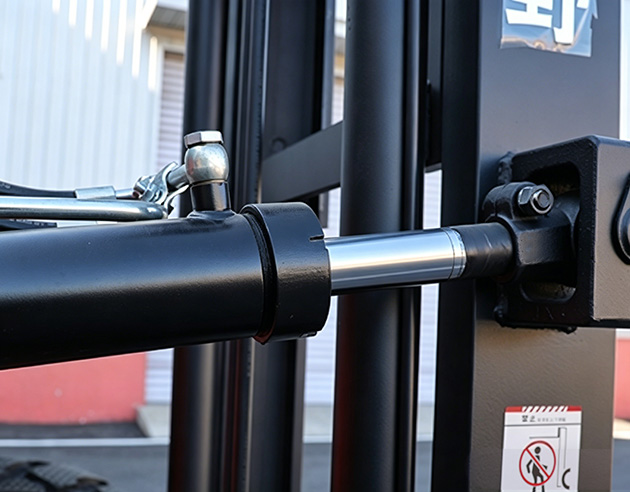

Hydraulic Cylinder

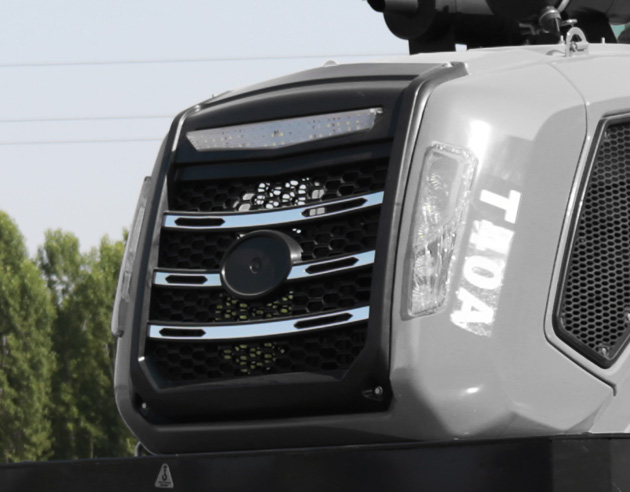

Radiator

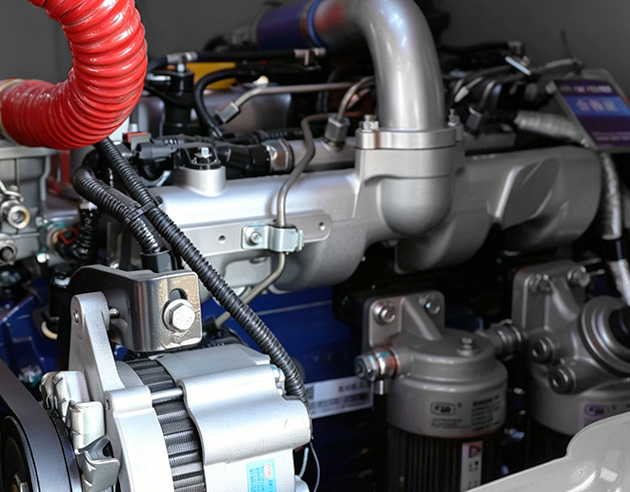

Engine

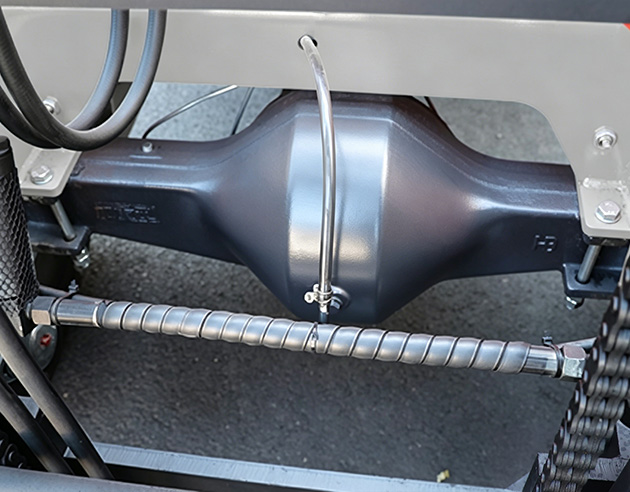

Axles

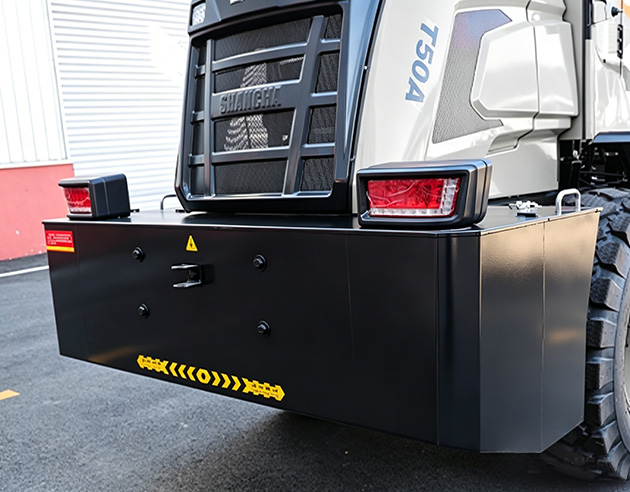

Counterweight

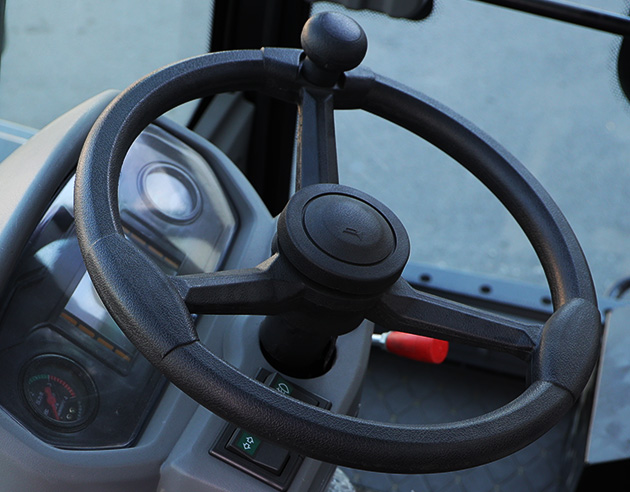

Operating System

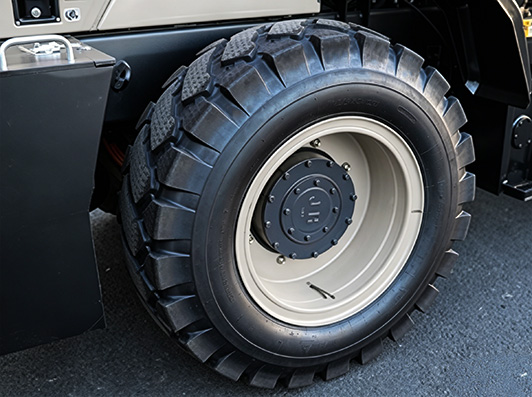

Tires

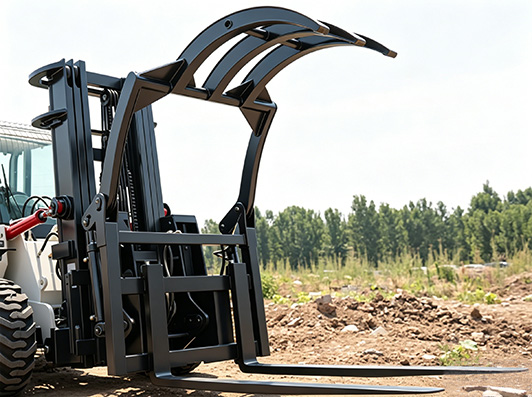

Accessories

Performance & Parameters

Specification
Rated Lifting Weight	5000kg
Rated Lifting Height	4000-7000mm
Engine Brand	Yunnei 4102 Turbocharged
Rated Power	76kw
Turning Radius	4500mm
Climbing Ability	≤35°
Load Center Distance	600mm
Max. Travel Speed	45km/h
Wheelbase	2400mm
Main Dimensions
Overall Dimensions(LWH)	420019002850mm
Fork Length	1520mm(Optional)
Mast Front Ground Clearance	300-380mm
Wheelbase Center Ground Clearance	350mm
Mast width	180mm
Performance
Drive Mode	Four-Wheel Drive
Gearbox	280 Dual High-Low Speed Hydraulic Torque Converter
Axle	Wheel Side Reduction Axle
Tire	16/70-24 Reinforced

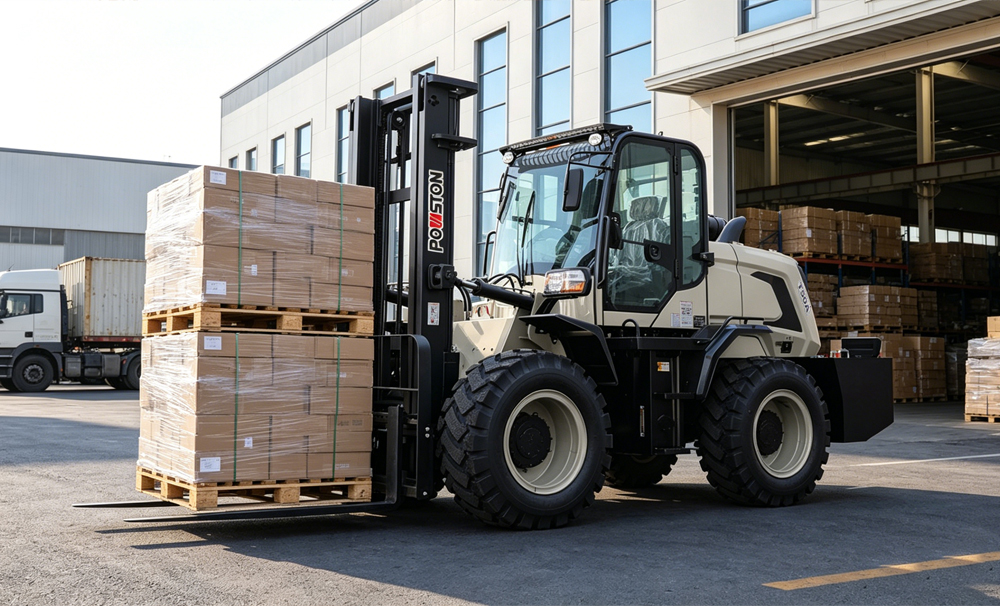

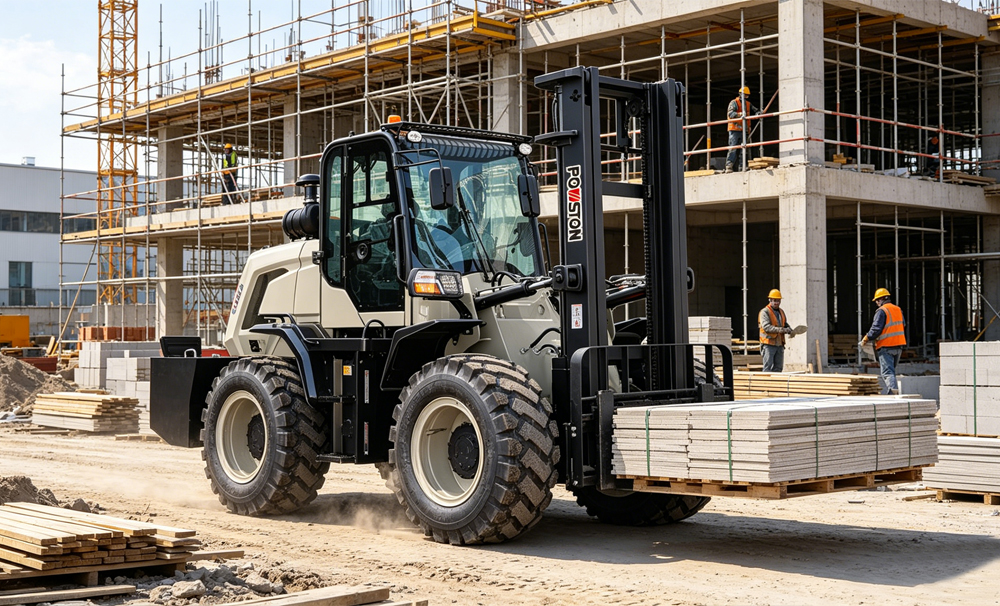

Application Scenarios

The 5-ton rough terrain forklift is specially designed for harsh outdoor complex working conditions where ordinary forklifts cannot work normally. It is widely used in large construction sites, earthwork yards, gravel plants, mine yards, and open-pit mining areas with rugged roads and muddy ground. It is also perfectly applicable for mountain road transportation, field engineering construction, farmland renovation, forestry timber handling, port and yard bulk cargo turnover, and highway and railway infrastructure projects. Whether it is rainy muddy roads, soft sandy soil, steep slopes or uneven rugged terrain, the forklift can maintain stable 5-ton heavy-load operation efficiency, fully meeting the all-weather and all-terrain heavy material handling demands of construction, mining, agriculture, forestry and transportation industries.

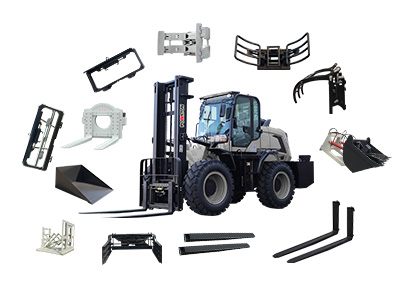

Can Be Equipped with Assistive Devices
