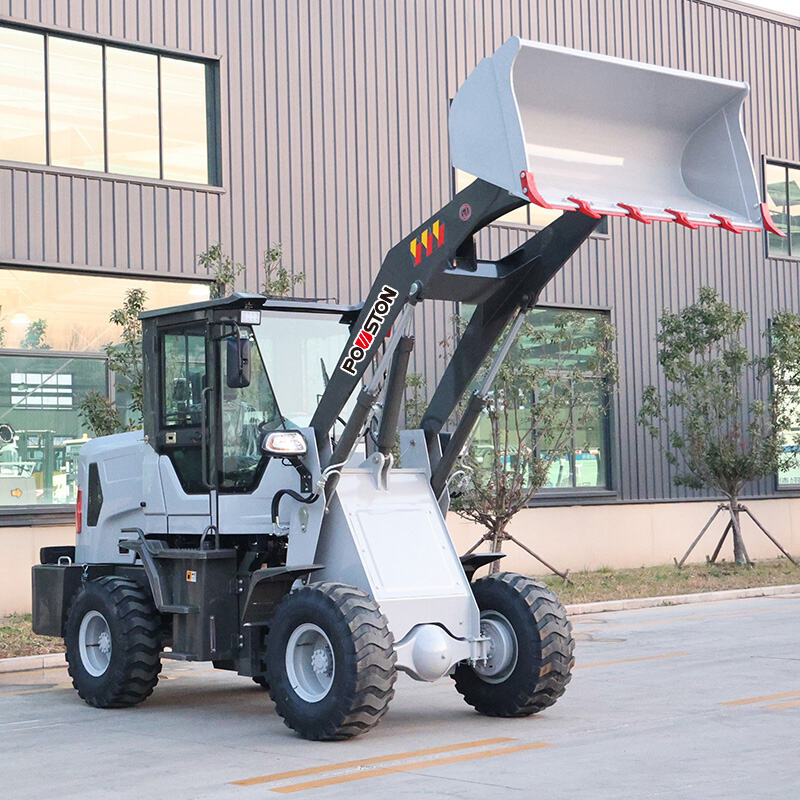

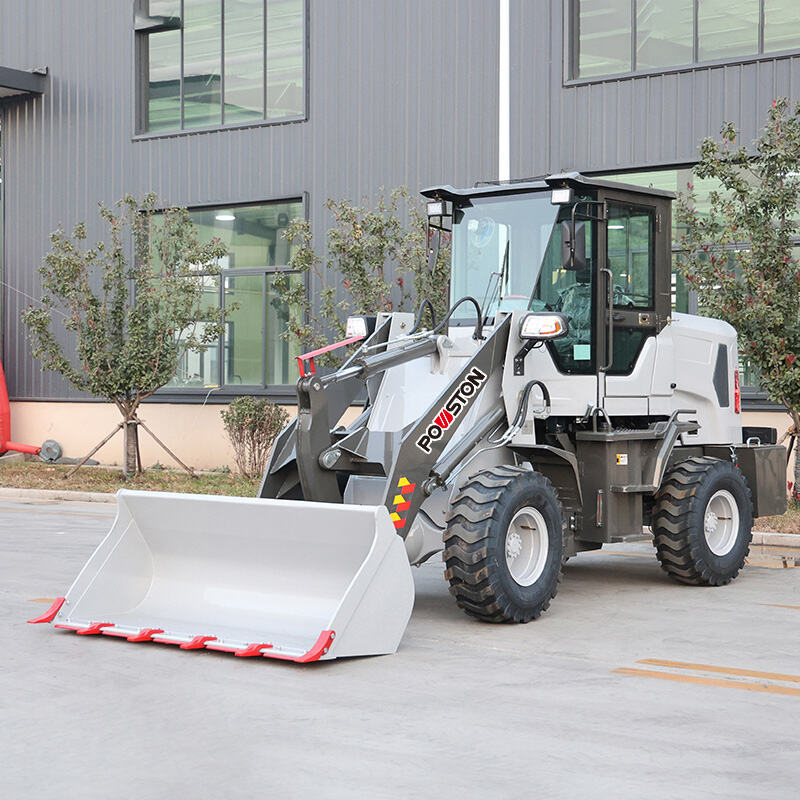

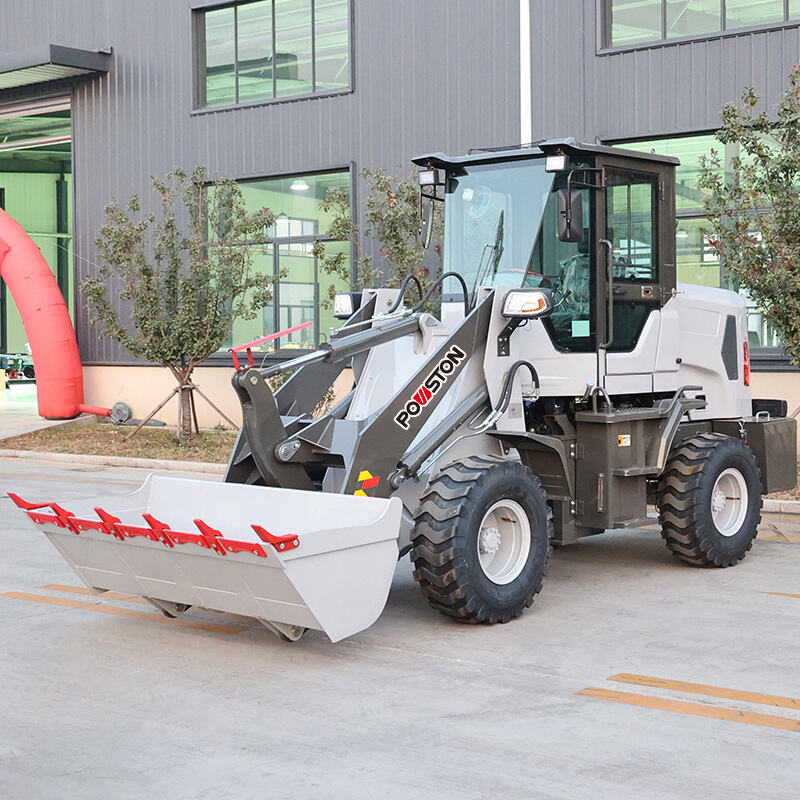

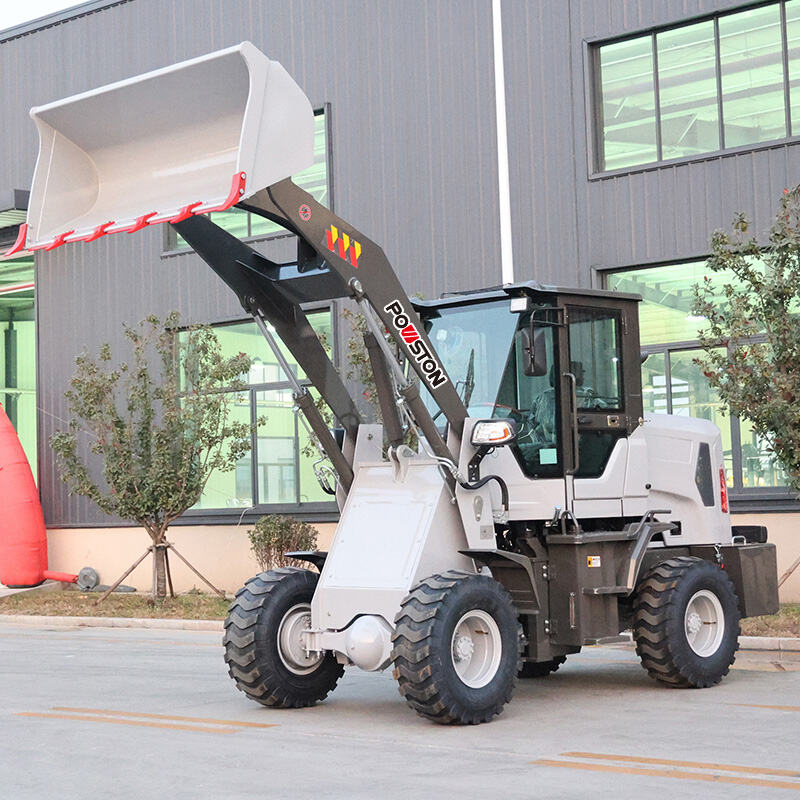

PL-1500 1.5t medium loader is upgraded for municipal works, logistics warehouses, sand yards and road maintenance, bridging the efficiency gap between mini and heavy construction machinery. Its thickened steel frame, heavy-duty drive axle and high-torque diesel engine improve load capacity and durability. The enlarged standard bucket raises handling efficiency for bulk materials. Balanced structure ensures agility and stable load bearing. It accepts rock buckets, log grapples and pallet forks. We offer export certifications, strict pre-shipment tests, global spare parts and local after-sales service.
Our PL-1500 1.5-ton Wheel Loader delivers balanced medium-load loading performance. Equipped with reinforced load arm, high-efficiency engine and medium-capacity bucket, it balances flexible indoor warehouse bulk material stacking and stable outdoor medium-heavy material shoveling. Wear-resistant tires and stable chassis support long-hour continuous operation both indoors and outdoors, fully ensuring efficient cargo circulation and operator safety.
| Specification | |
| Rated Load | 1500kg |
| Engine Brand | Huadong490 |
| Rated Power | 40kw(54HP) |
| Wheelbase | 2400mm |
| Boom Thickness | 25mm |
| Max. Travel Speed | 35km/h |
| Machine Operating Weight | 3200kg |
| Main Dimensions | |
| Overall Dimensions(L*W*H) | 5700*1900*2700mm |
| Bucket Width | 1800mm |
| Unload Height | 3200mm |
| Lifting Height | 4400mm |
| Performance | |
| Drive Mode | Full-Time 4WD |
| Gearbox | 265 Torque Converter (Dual High-Low Speed) |
| Axle | Heavy-Duty Jingang Axle |
| Tire Model | 20.5-16 |
| Operation Mode | Single Lever Operation |
| Cooling System | Hydraulic Oil Cooler |
