Fuel-saving diesel engines cut daily operation costs. Sealed cab blocks dust and noise for comfortable long-hour work. Reinforced lifting arms handle soil, feed, sand and waste loading & stacking steadily. Multiple quick-change attachments are optional: pallet forks, snow blades, grass grapples and small buckets to expand working functions. All units pass strict factory inspection before delivery, supported by global spare parts and after-sales service. Best for small farmers, garden contractors, property management and rural small construction teams.

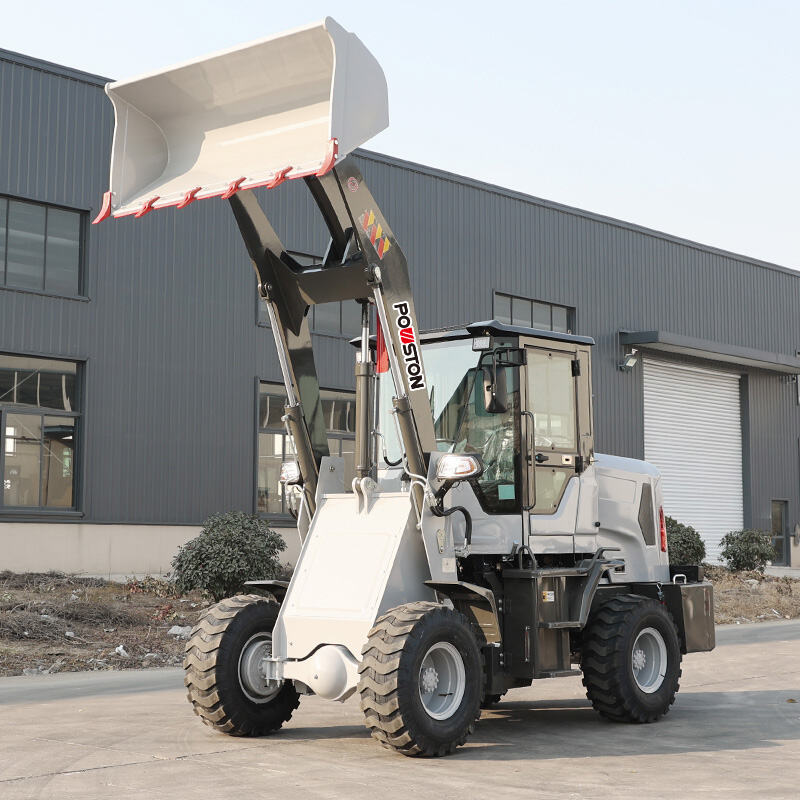

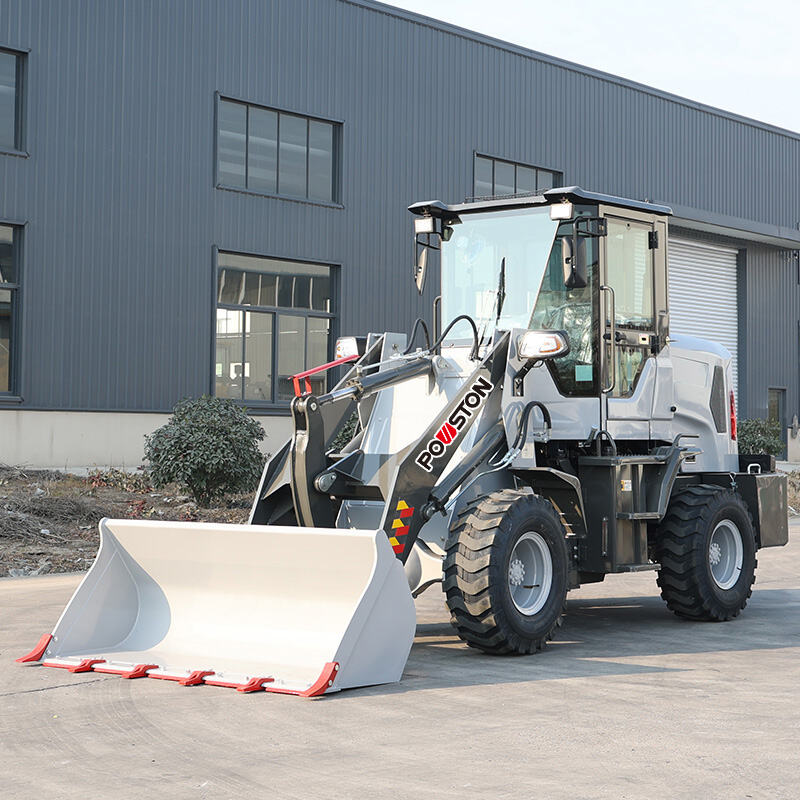

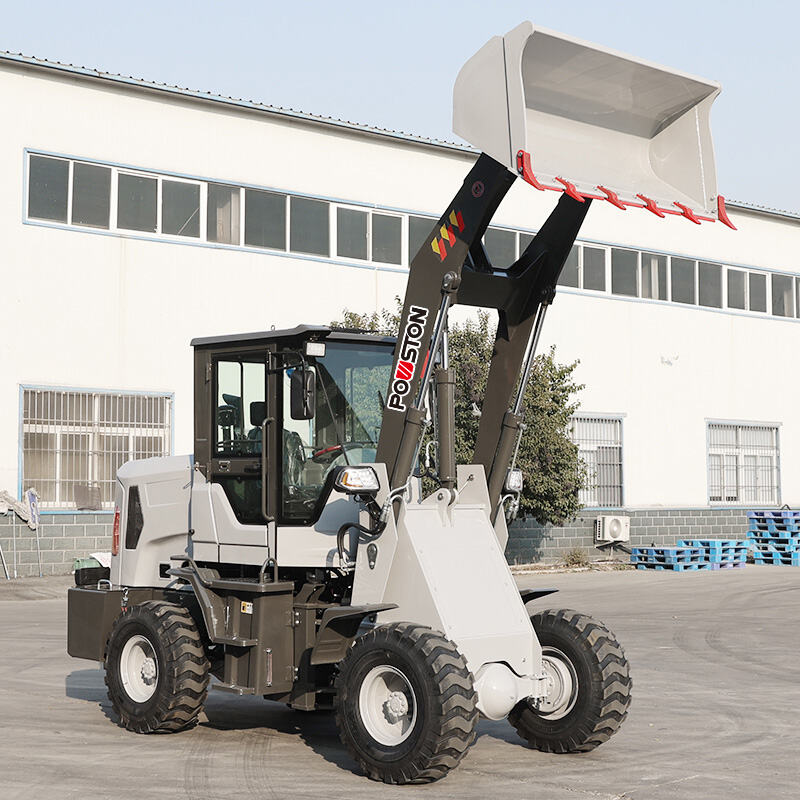

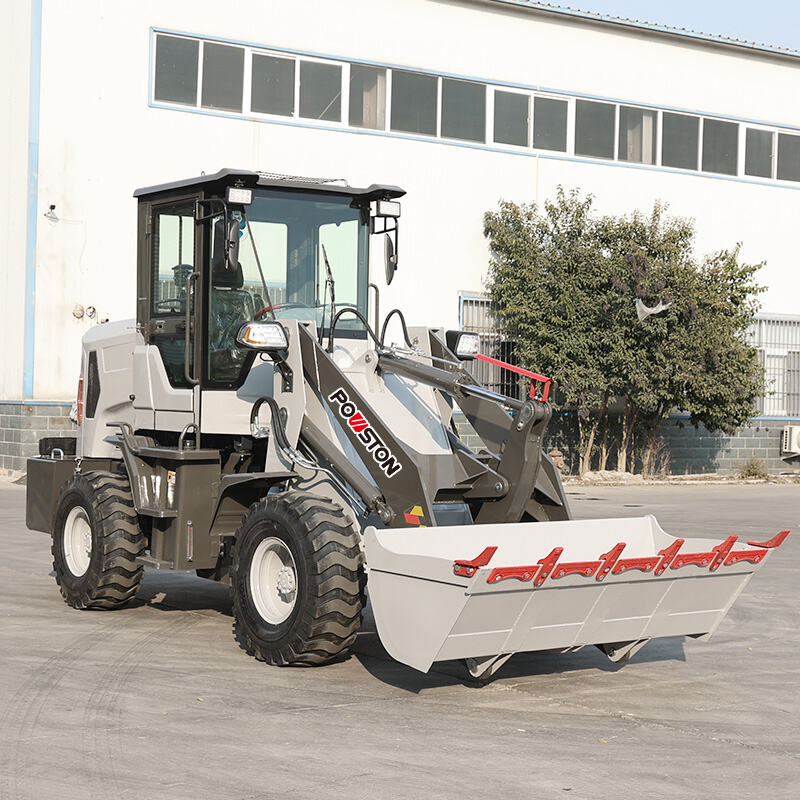

The PL-1000（1t） Mini Wheel Loader is engineered for light-duty material loading and moving tasks. Built with a compact narrow body and fuel-saving diesel engine, it features flexible turning radius and high maneuverability. It works smoothly inside indoor warehouses, greenhouses and tight farm yards, as well as small light construction sites. Stable lifting performance and solid wear-resistant body guarantee efficient material transport and full operator safety in narrow mixed indoor-outdoor working spaces.
| Specification | |
| Rated Load | 1000kg |
| Engine Brand | Huadong490 |
| Rated Power | 40kw(54HP) |
| Wheelbase | 2400mm |
| Boom Thickness | 25mm |
| Max. Travel Speed | 35km/h |
| Machine Operating Weight | 2850kg |
| Main Dimensions | |
| Overall Dimensions(L*W*H) | 5700*1900*2700mm |
| Bucket Width | 1800mm |
| Unload Height | 3200mm |
| Lifting Height | 4400mm |
| Performance | |
| Drive Mode | Full-Time 4WD |
| Gearbox | 265 Torque Converter (Dual High-Low Speed) |
| Axle | Isuzu Axle |
| Tire Model | 20.5-16 |
| Operation Mode | Single Lever Operation |
| Cooling System | Hydraulic Oil Cooler |
