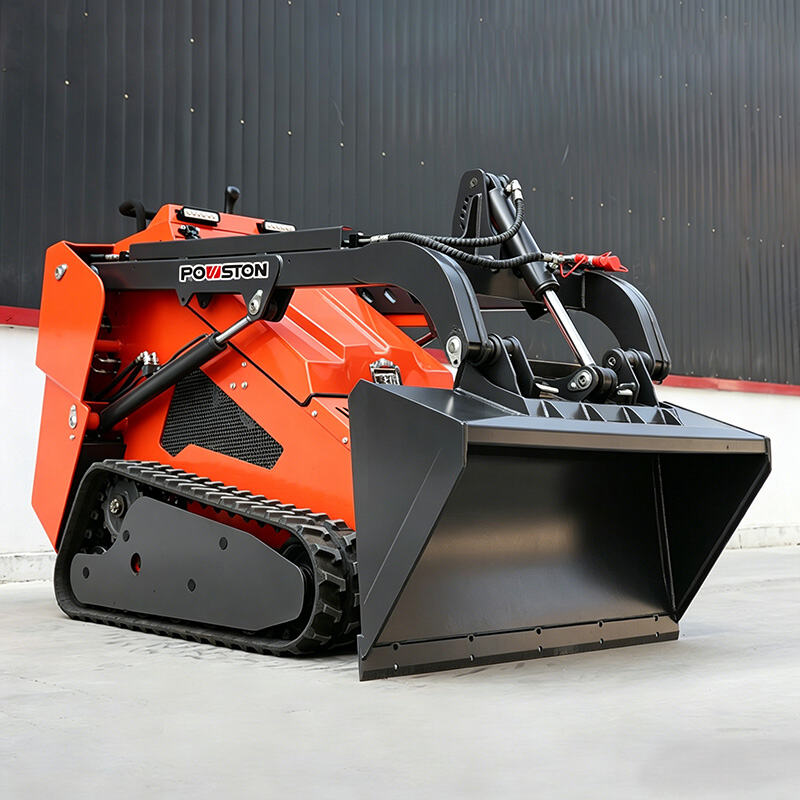

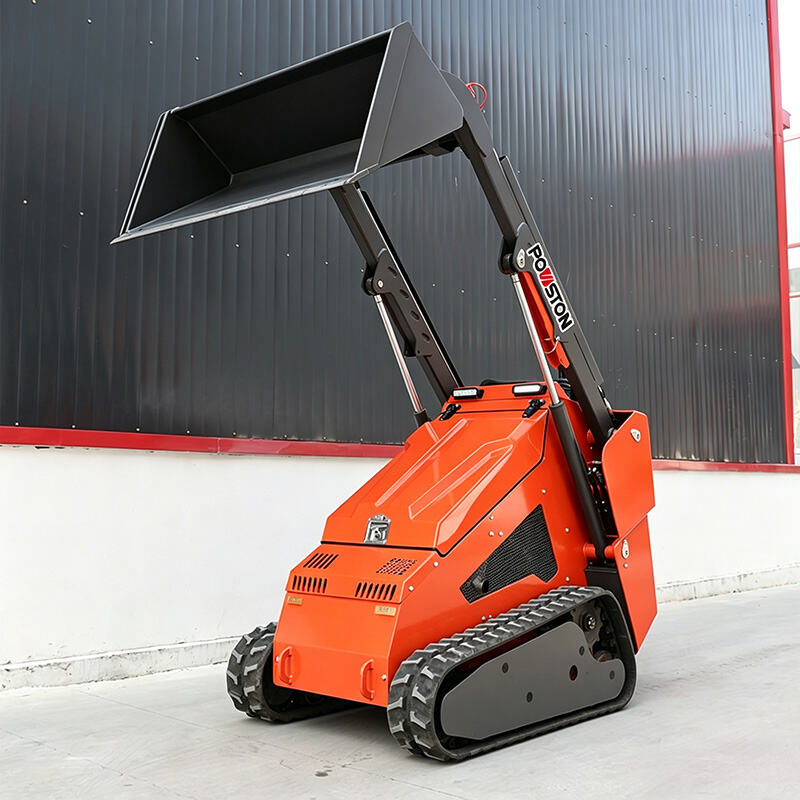

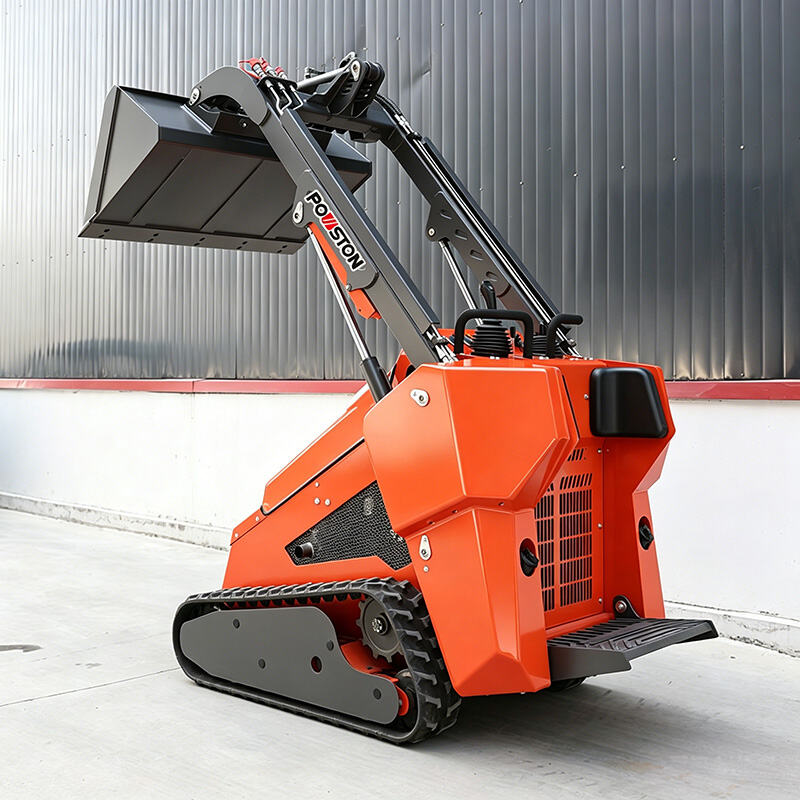

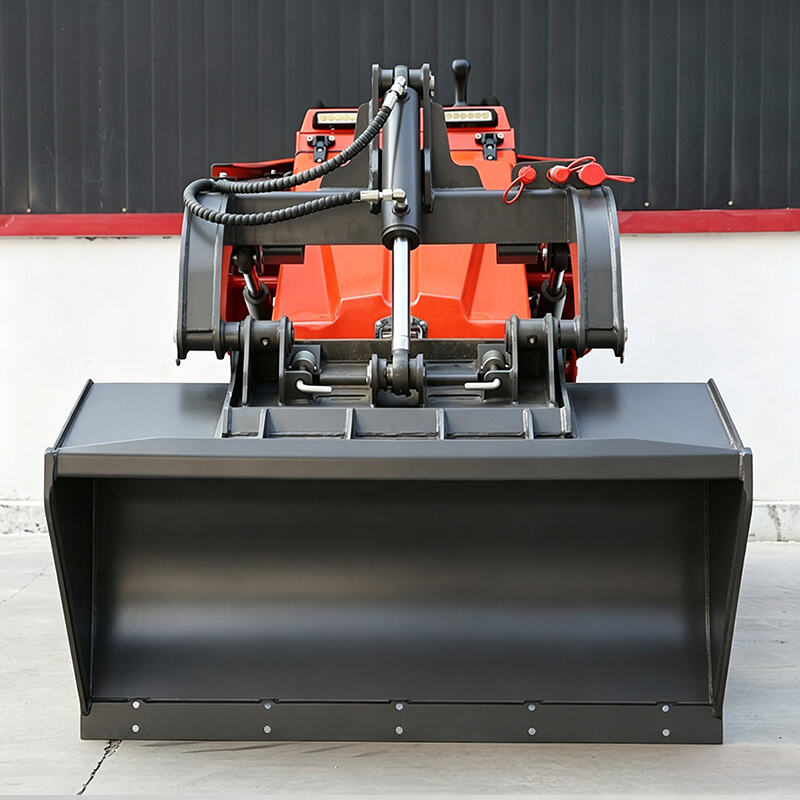

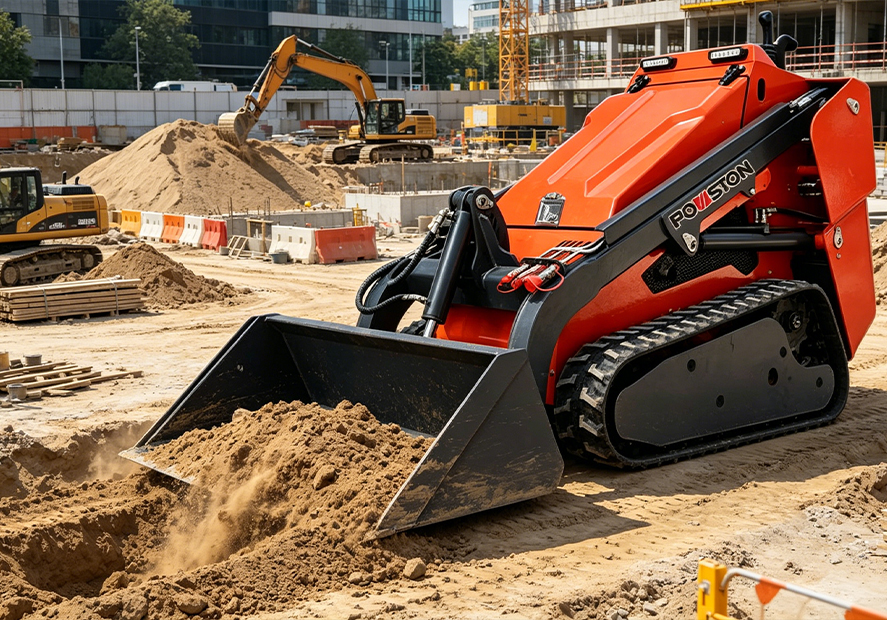

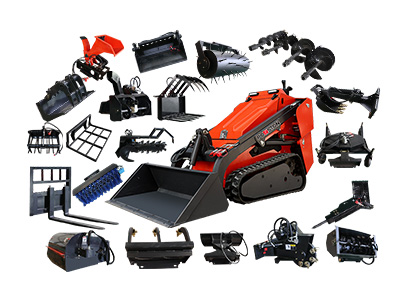

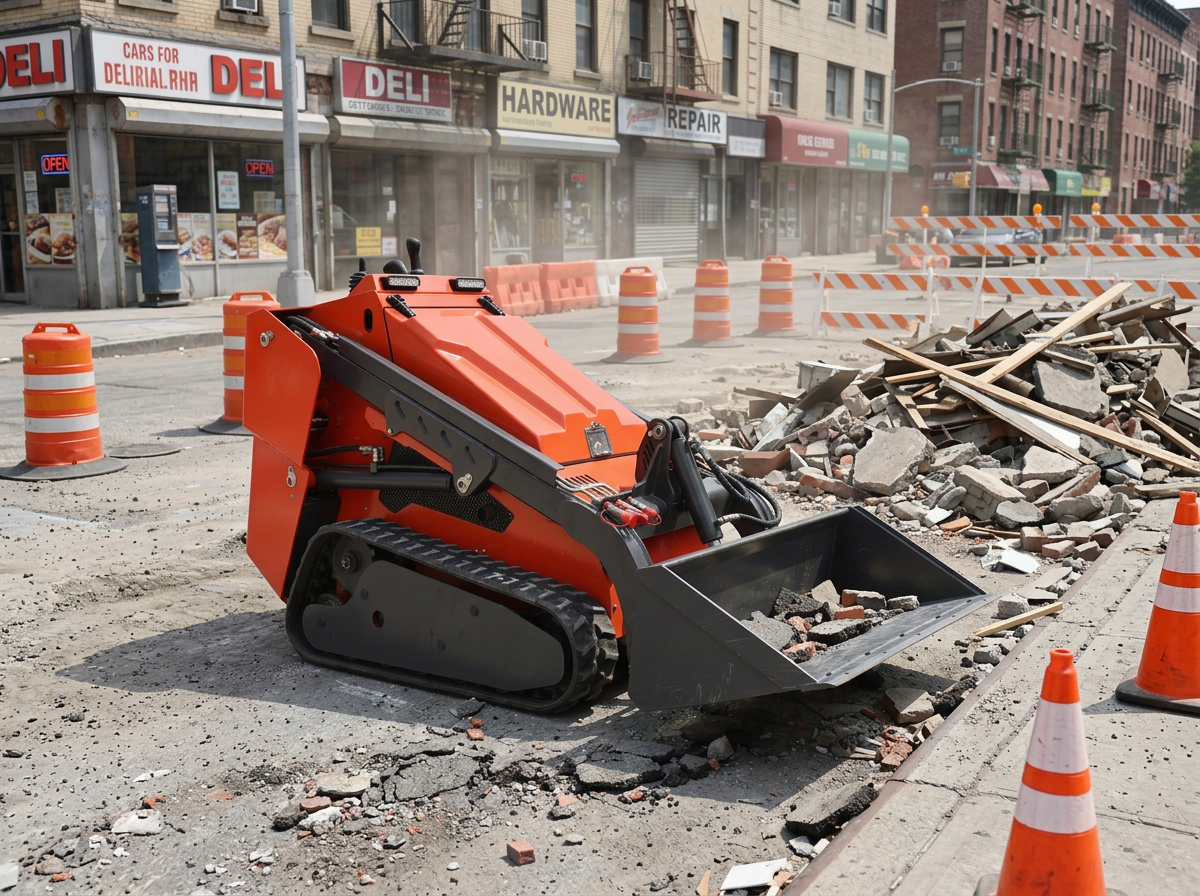

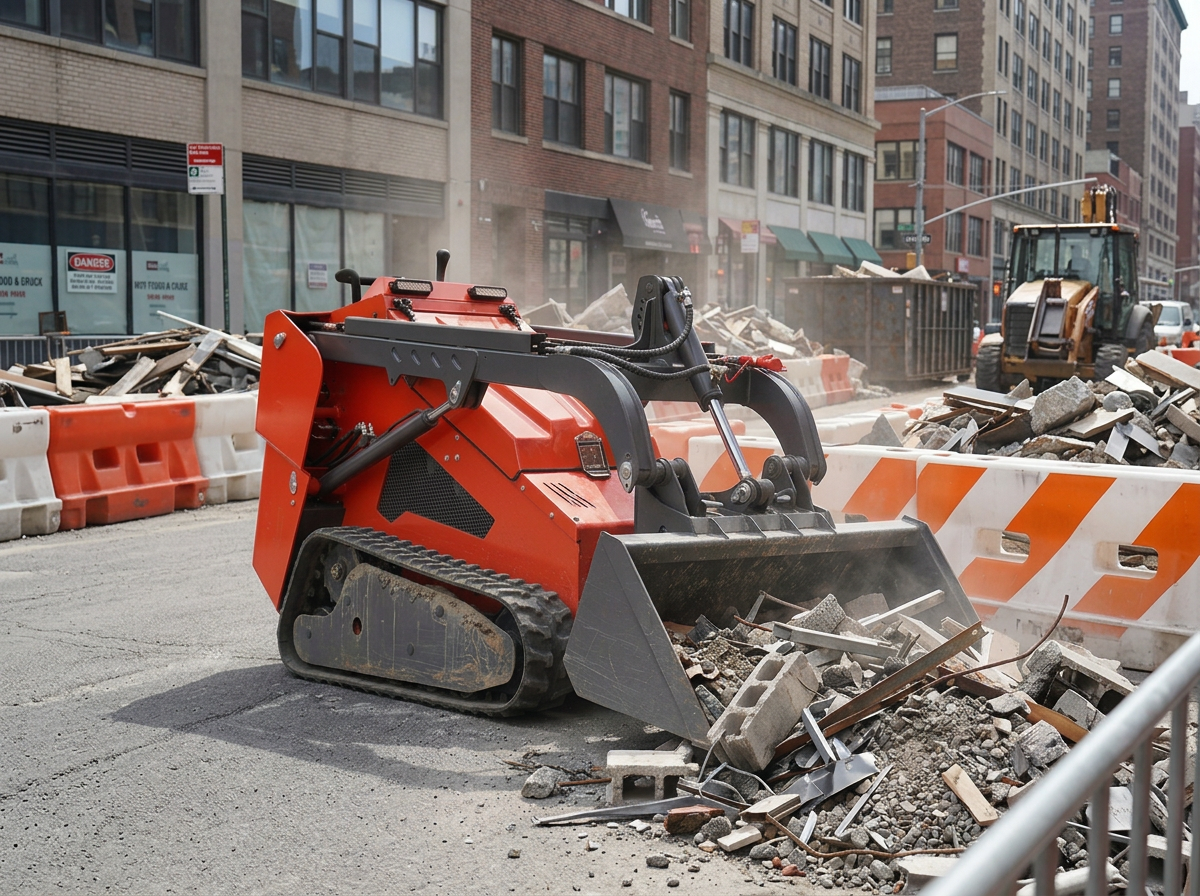

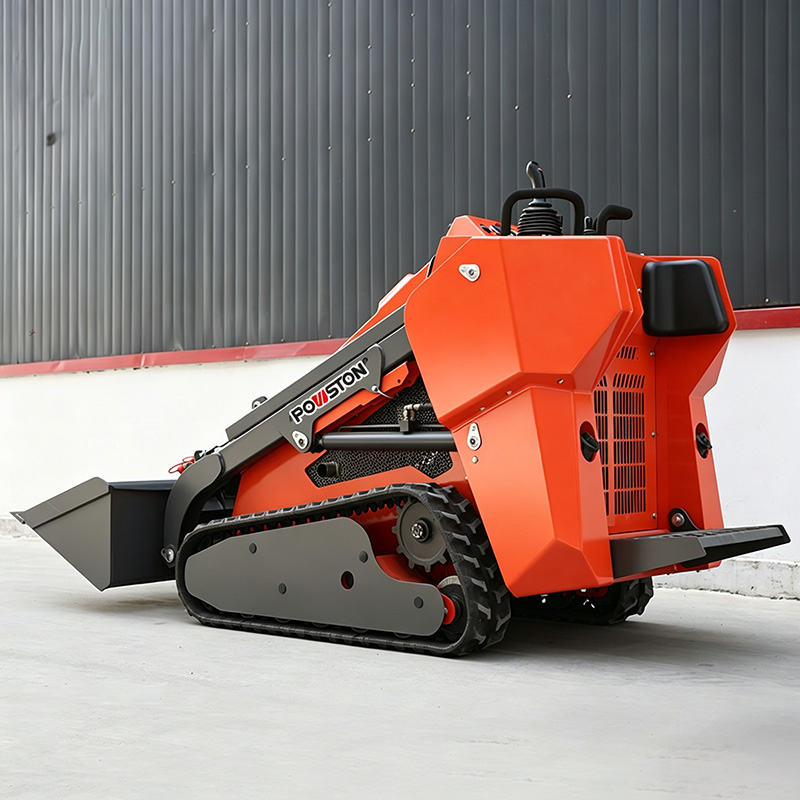

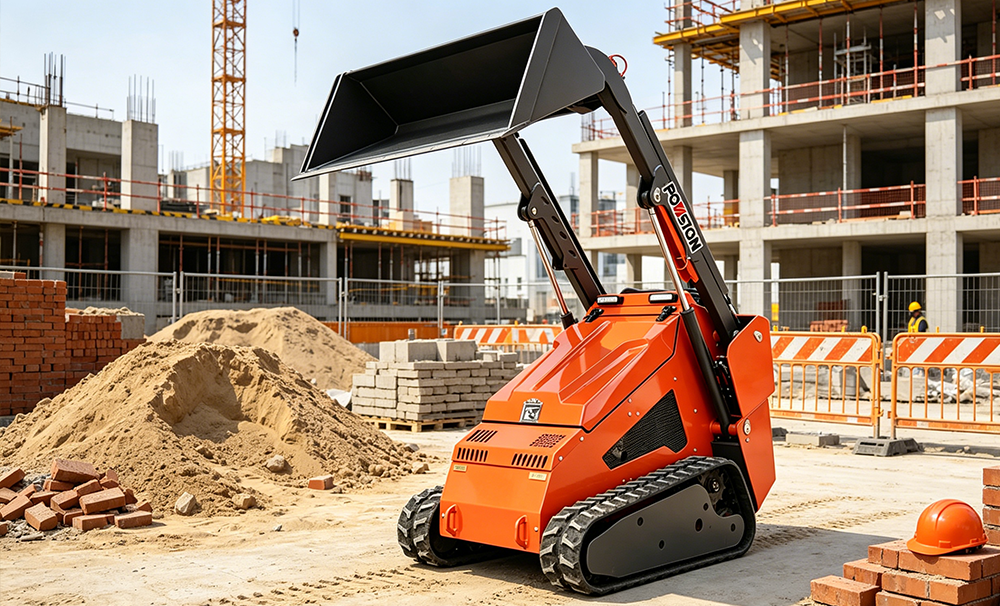

The PL-680H skid steer loader is an upgraded heavy-duty compact construction machine, optimized and upgraded on the basis of traditional mini loaders. It integrates stronger power performance, higher load-bearing capacity and more stable working efficiency, perfectly adapting to medium and high-intensity construction scenarios. Featuring compact body, zero-radius turning and flexible steering, this model can easily operate in narrow spaces such as urban construction sites, residential courtyards, garden greening, farmland renovation, municipal road maintenance and warehouse logistics. With a highly expandable design, it supports diversified accessory replacement, realizing multi-functional operation and bringing higher economic benefits for users.

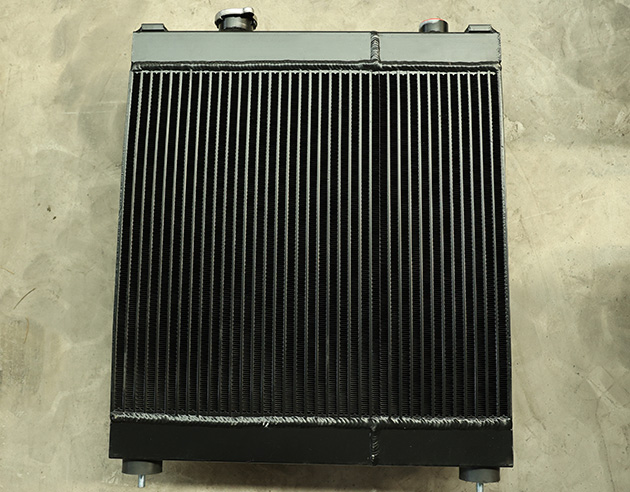

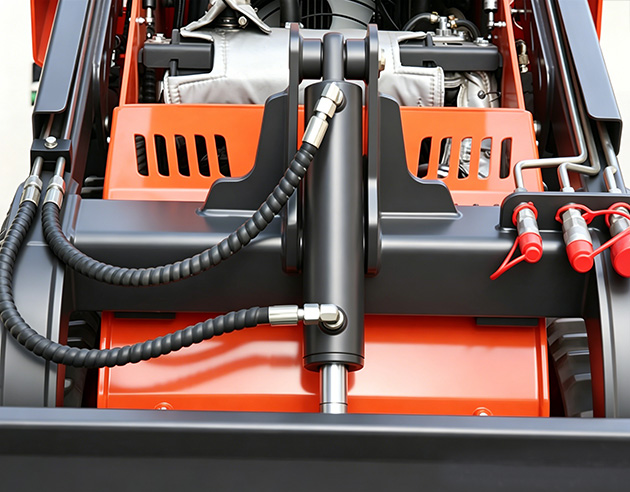

The L-680H skid steer loader is equipped with a high torque professional power system, with reasonable power output matching and specially optimized hydraulic transmission structure. The equipment has strong power reserve, fast response speed, stable lifting operation, and reliable walking performance.Equipped with a mature full-hydraulic drive system, the machine features sensitive hydraulic response, uniform power output and coordinated lifting and walking actions. It realizes stepless speed regulation, with fast loading and unloading speed and high operating efficiency. The hydraulic system is equipped with an efficient heat dissipation structure, which can maintain stable working state for a long time without high temperature failure, ensuring continuous and efficient operation in high-intensity working conditions.
| Specification | |
| Rated Load Capacity | 780kg |
| Operating Weight | 1380kg |

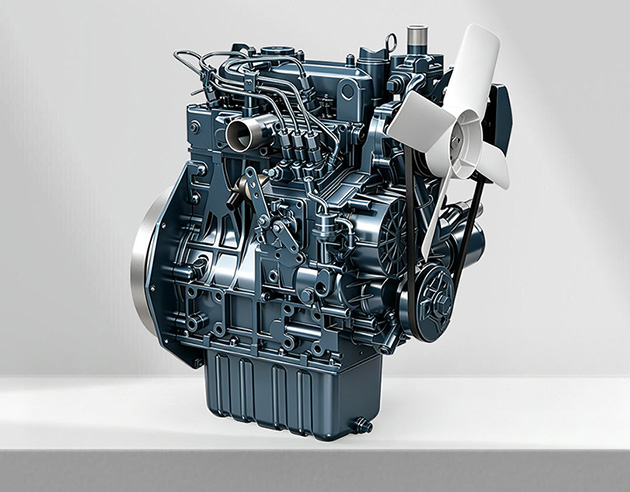

| Power Model | Koop D1105 |
| Output Power | 18.2kw / 3000rpm |
| Max. Torque | 70.4Nm/2200rpm |
| Engine Oil | 5.1L |
| Fuel Tank Capacity | 29L |
| Hydraulic Oil Tank Capacity | 38L |
| Optional Engine | Kubota D1105/Yanmar 3TNV80F |
| Starting Mode | Electric Start |
| Main Dimensions | |
| Max. Working Height | 2750mm |
| Max. Pin Height | 2358mm |
| Max. Dump Height | 1816/2300mm |
| Overall Height | 1532mm |
| Ground Clearance | 175mm |
| Overall Width | 1050mm |
| Bucket Width | 1235mm |
| Overall Length (with bucket) | 2903mm |
| Performance | |
| Bucket Capacity | 0.2m³ |
| Max. Lifting Force | 1200kg |
| Working Speed | 0~5.8km/h |
| Rated Pressure | 17Mpa |
| Lifting Time | 4.1s |
| Lowering Time | 2.4s |
| Dump Time | 1.5s |
| Bucket Swing Angle | 52° |
| Bucket Dump Angle | 30° |
| Rollback Angle (Bucket Retracted) | 22° |
| Departure Angle | 10° |
| Gradeability | 30° |
| Hydraulic Pump | Italian PWG/Bondioi&Pavesi |
| Hydraulic Motor | Danish Danfoss / Domestic |
| Valve | Italian Hydrocontrol / Domestic |

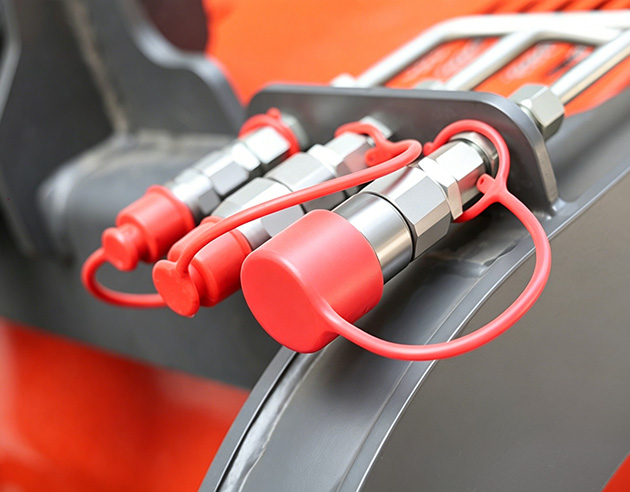

| Auxiliary System Pressure | 170bar |
| Auxiliary System Flow | 43L/min |
