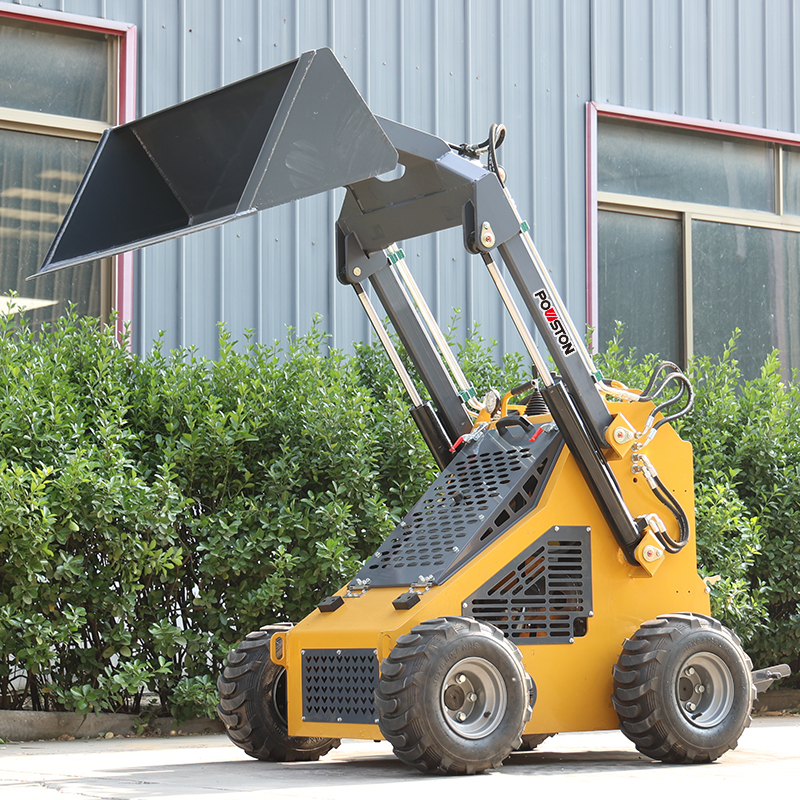

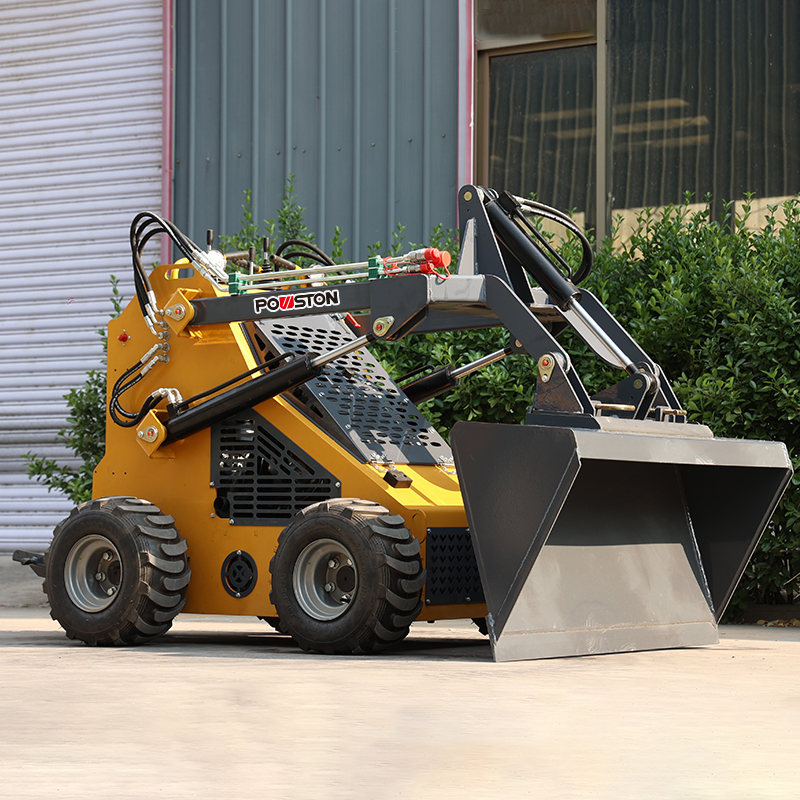

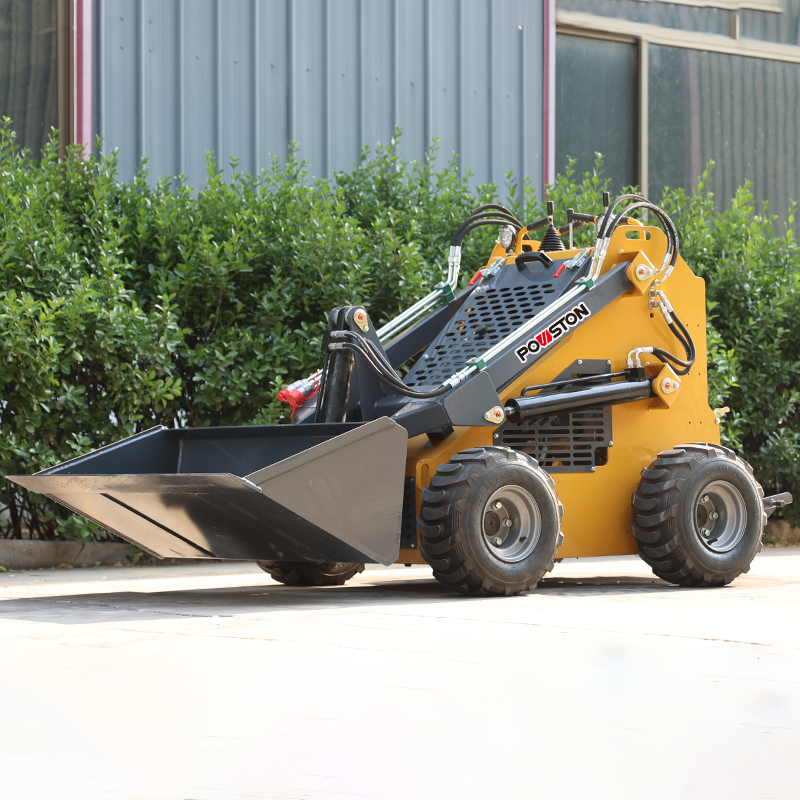

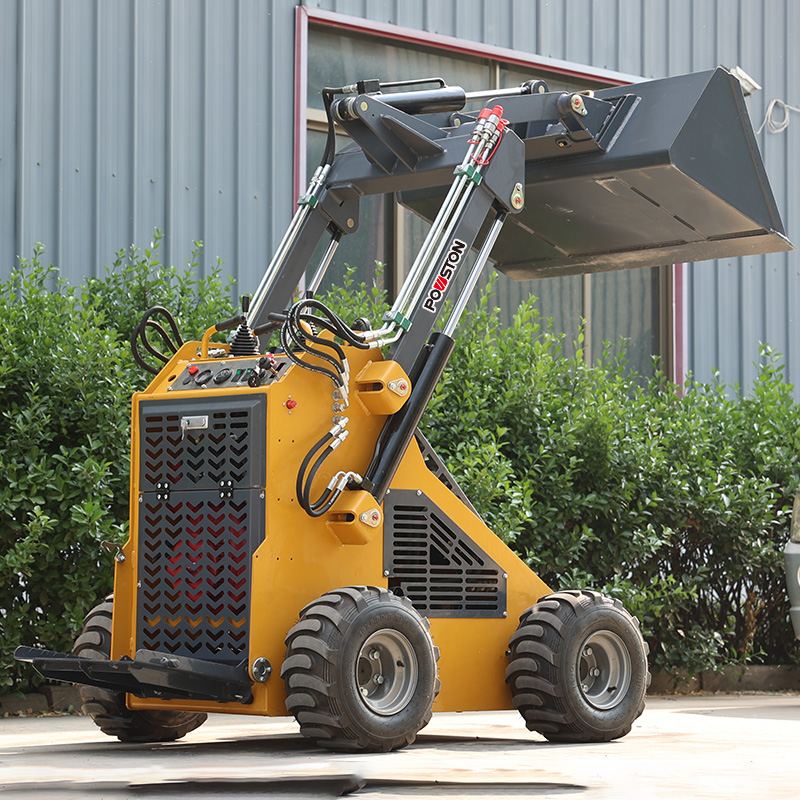

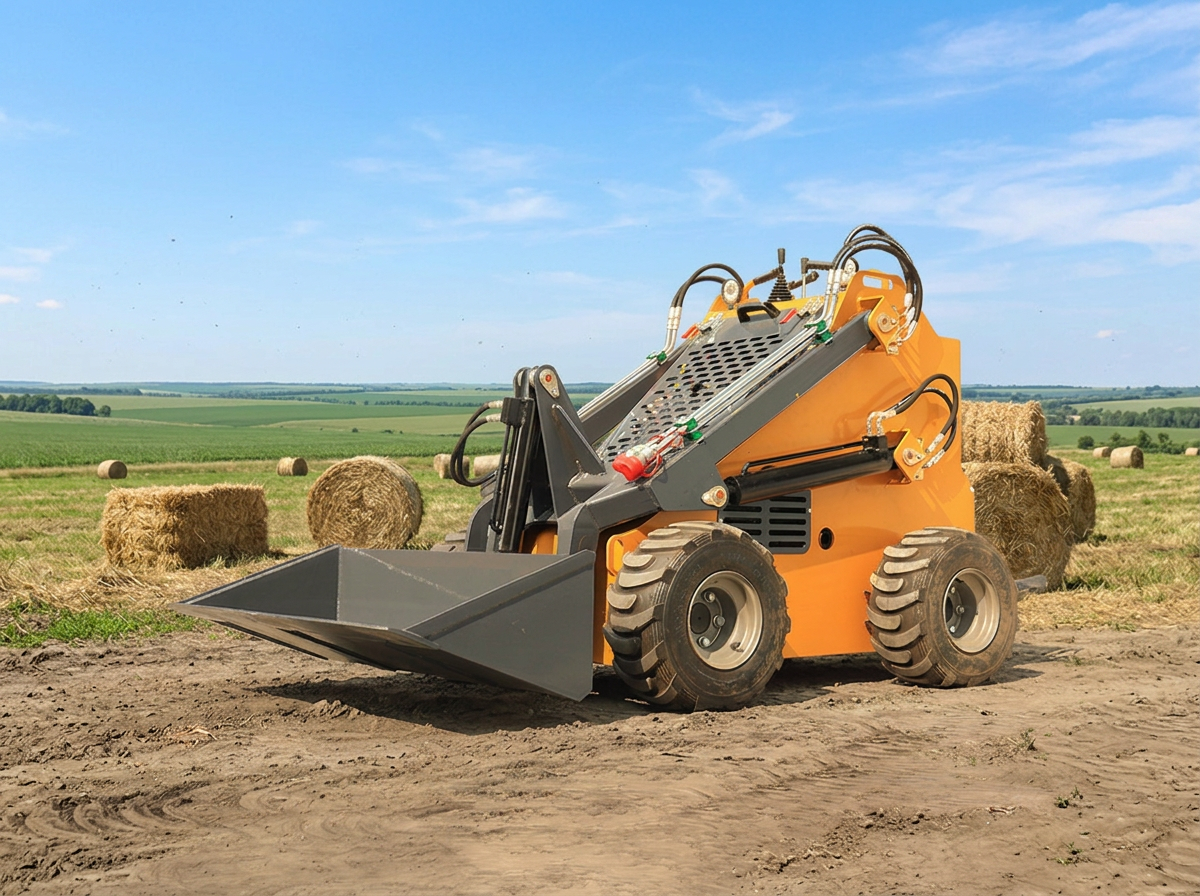

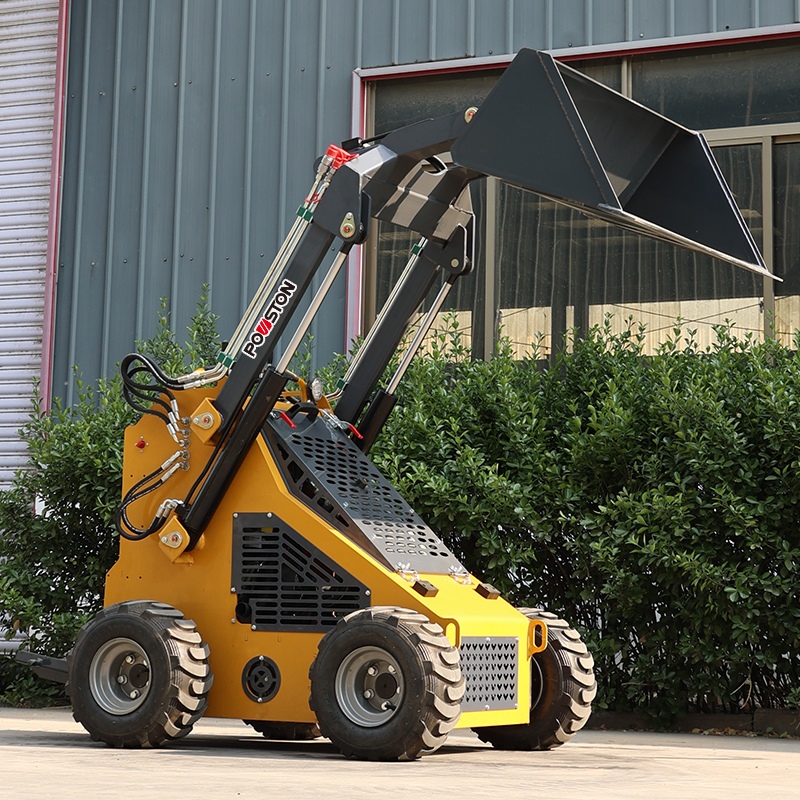

PL-380H Mini Skid Steer Loader is a compact, multi-functional light construction machinery engineered for narrow and restricted working spaces. It adopts zero-turn skid steering design, available in wheeled and tracked versions to fit diverse ground conditions.

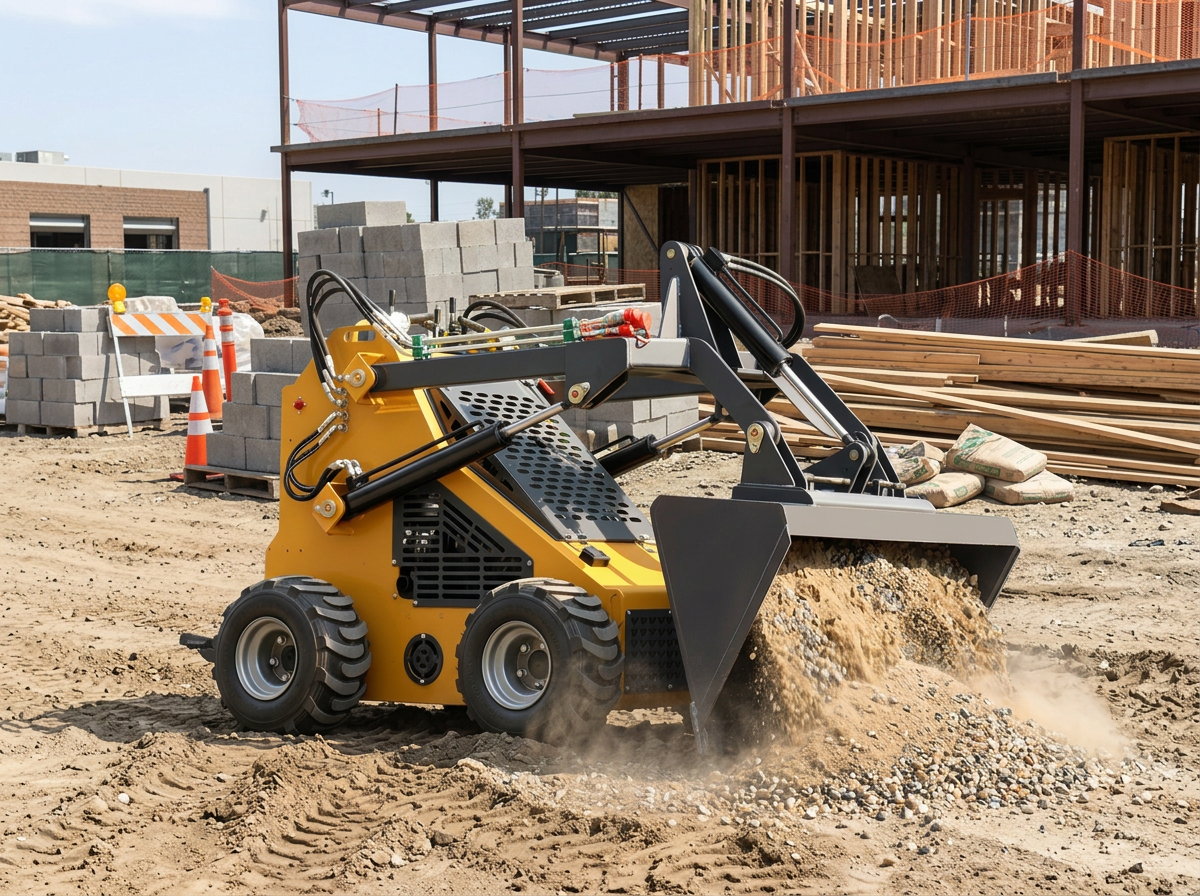

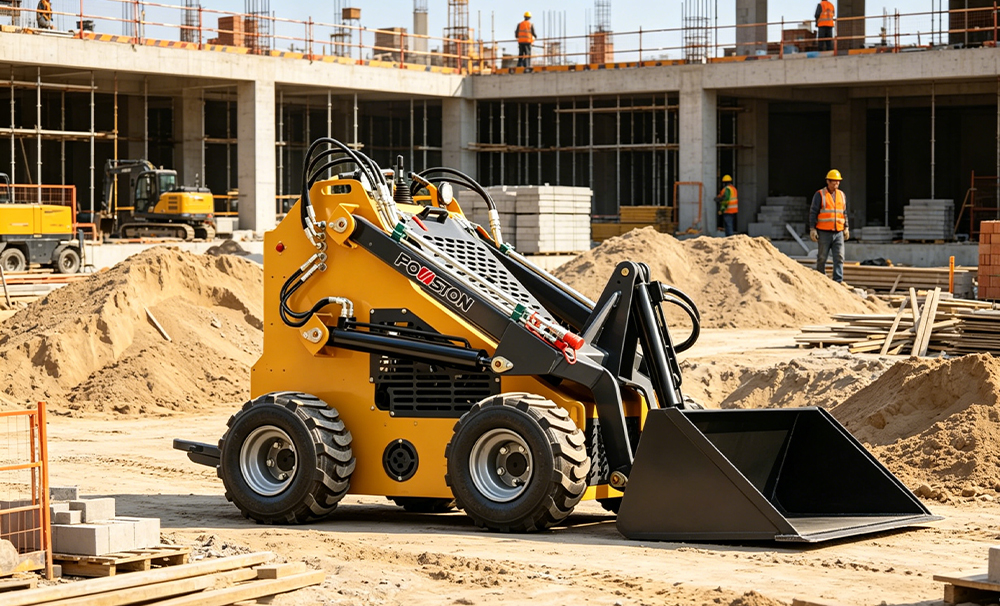

Super narrow body width (1200mm) easily passes narrow doorways, alleys, greenhouses and indoor workshops; zero-radius skid steering realizes in-place U-turn without extra space, perfectly solving operation pain points in cramped sites where large machines cannot access.

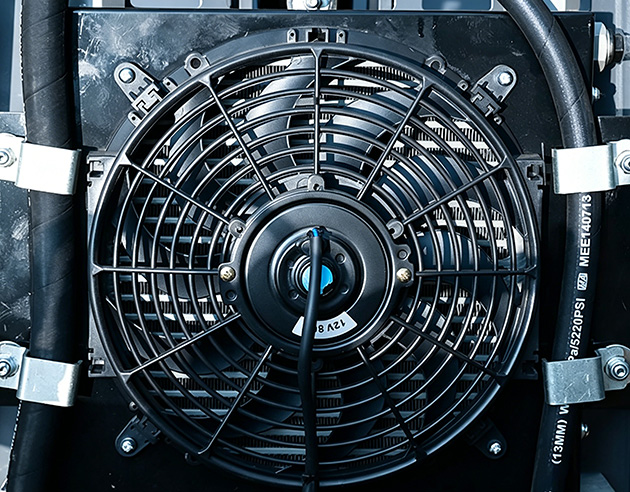

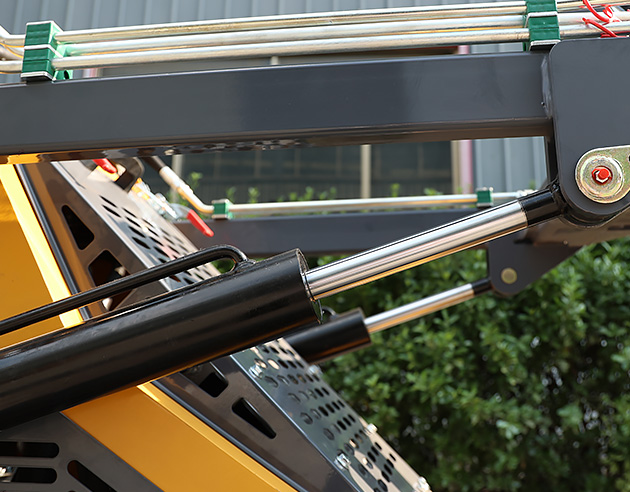

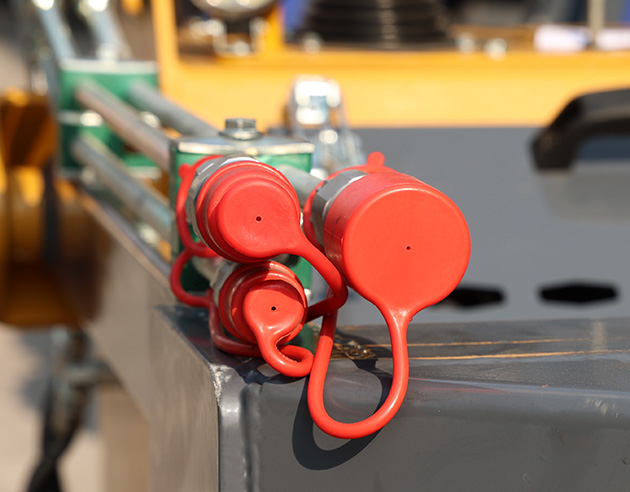

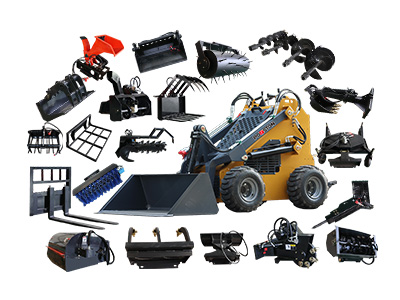

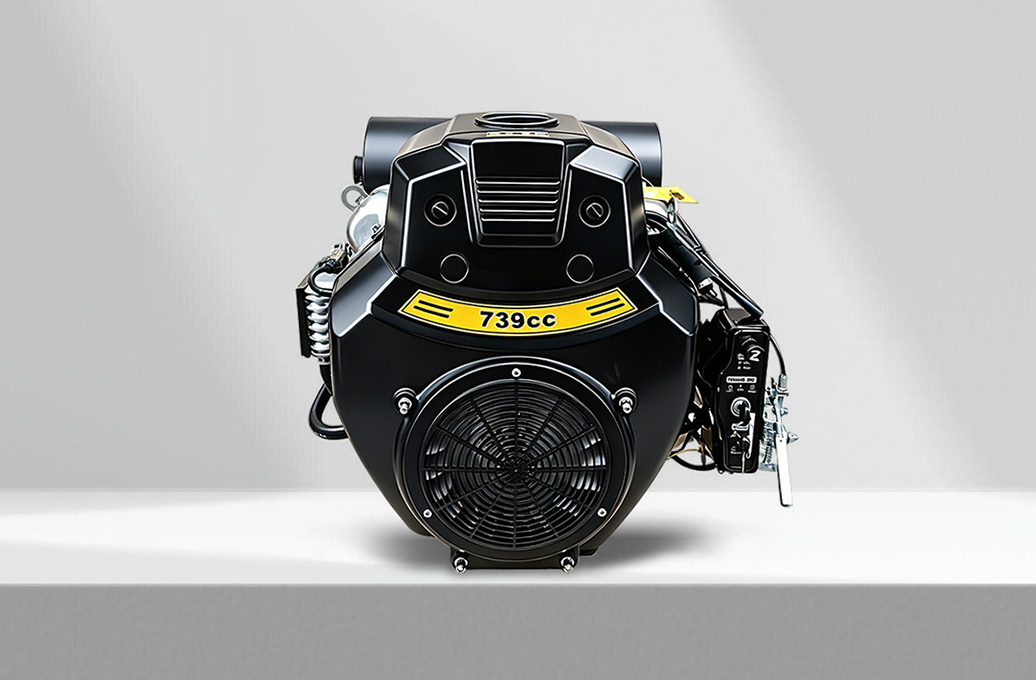

Supporting over 20 types of quick-change attachments,multi-purpose machine，Optional EPA-certified twin-cylinder gasoline engine (Briggs & Stratton / Rato / Honda), 16.8kW strong power, low vibration, low fuel consumption and easy electric start. Large cyclone air filter and independent cooling system guarantee long-hour continuous work without overheating，large auxiliary hydraulic flow, smooth boom lifting, bucket tilting and attachment driving, fast working cycle and higher overall efficiency than single-pump models.
| Specification | |
| Rated Load Capacity | 380kg |
| Operating Weight | 1300kg |
| Power Model | Rato 739 |
| Rated Power | 26HP / 3600rpm |
| Fuel Tank Capacity | 28L |
| Hydraulic Oil Tank Capacity | 20L |
| Optional Engine | Rato 739 / Koop 292 / Briggs & Stratton 3864 / Honda GX690 |
| Main Dimensions | |
| Max. Working Height | 2200mm |
| Max. Pin Height | 1900mm |
| Max. Dump Height | 1560/1800mm |
| Max. Dump Reach | 348mm |
| Overall Height | 1350mm |
| Ground Clearance | 100mm |
| Wheelbase | 860mm |
| Length (without bucket) | 1780mm |
| Overall Width | 1200mm |

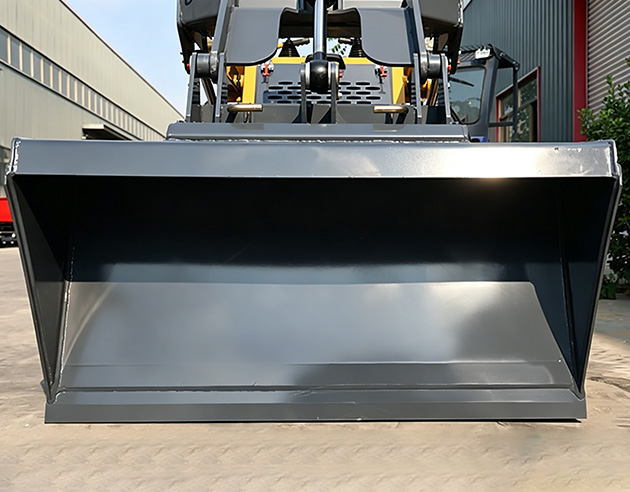

| Bucket Width | 1190mm |
| Overall Length (with bucket) | 2500mm |
| Front Turning Radius | 1307mm |
| Fumigation-Free Wooden Case | 2070*1250*1460mm |
| Steel Frame Stackable Packaging | 2190*1200*2540mm |
| Performance | |
| Bucket Capacity | 0.15m³ |
| Max. Breakout Force | 550kg |
| Travel Speed | 0-5.5km/h |
| Bucket Swing Angle | 55° |
| Bucket Dump Angle | 30° |
| Rollback Angle (Bucket Retracted) | 25° |
| Departure Angle | 11° |
| Traction Force | 520kg |
| Gradeability | 30° |
| System Pressure | 17MPa |
| Standard Flow | 25L/min |
| Travel Pump Flow | 22L/min |
| Charge Pump Flow | 10L/min |
| Working System Flow | 44L/min |

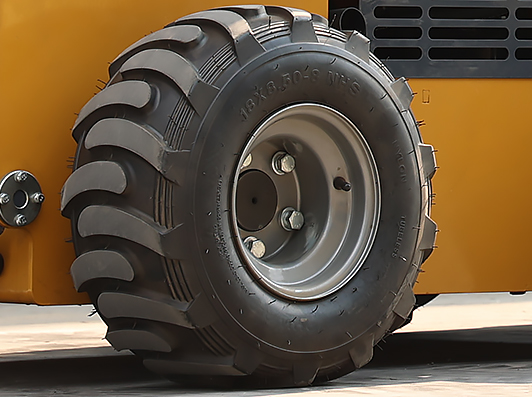

| Engineering Tire (Herringbone Pattern) | 18*8.5-8 |
| Track Model | 180*60*46 |
