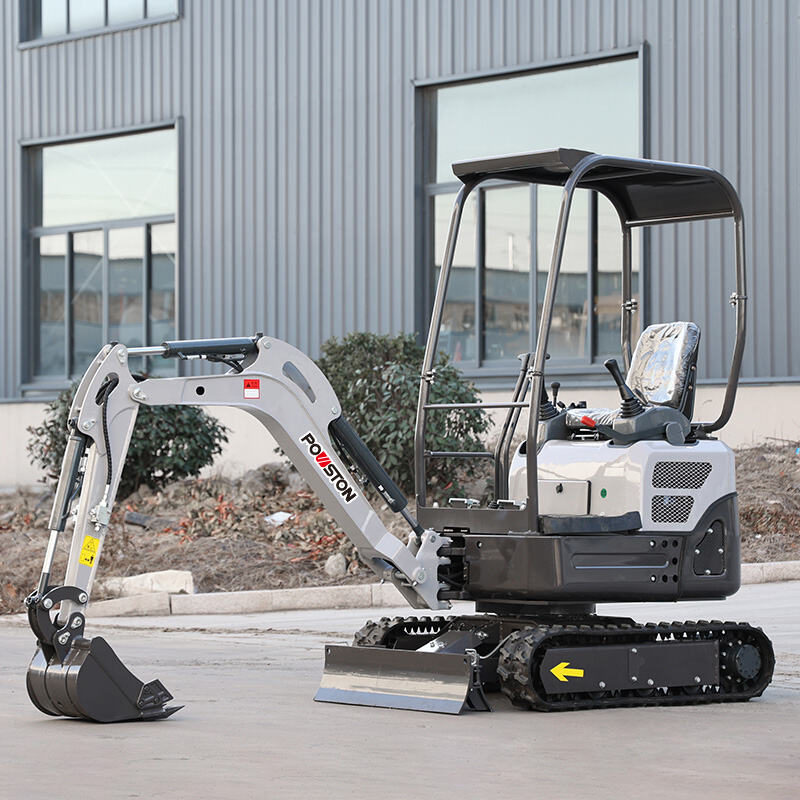

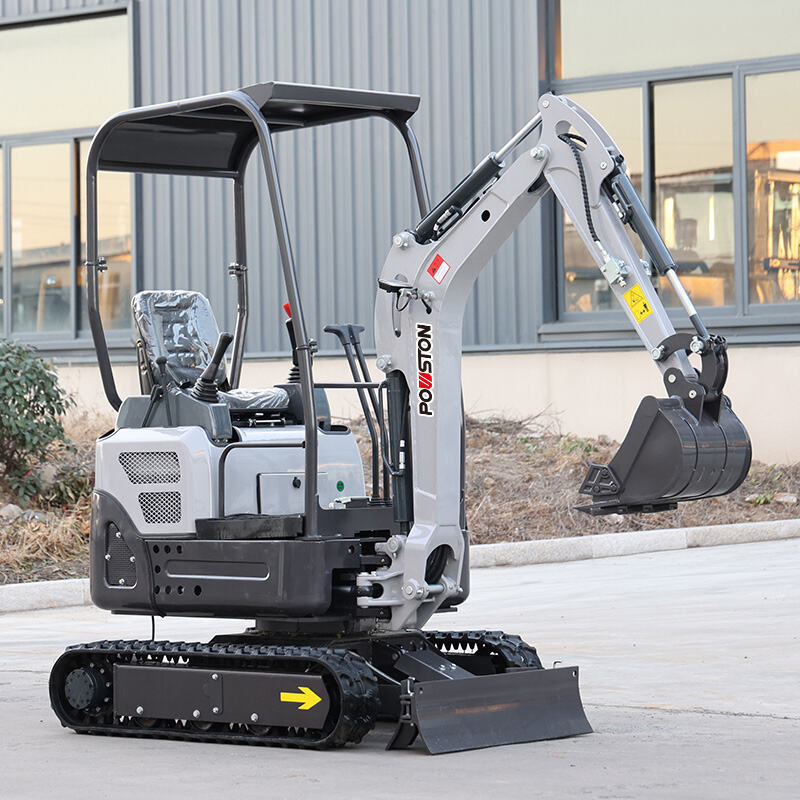

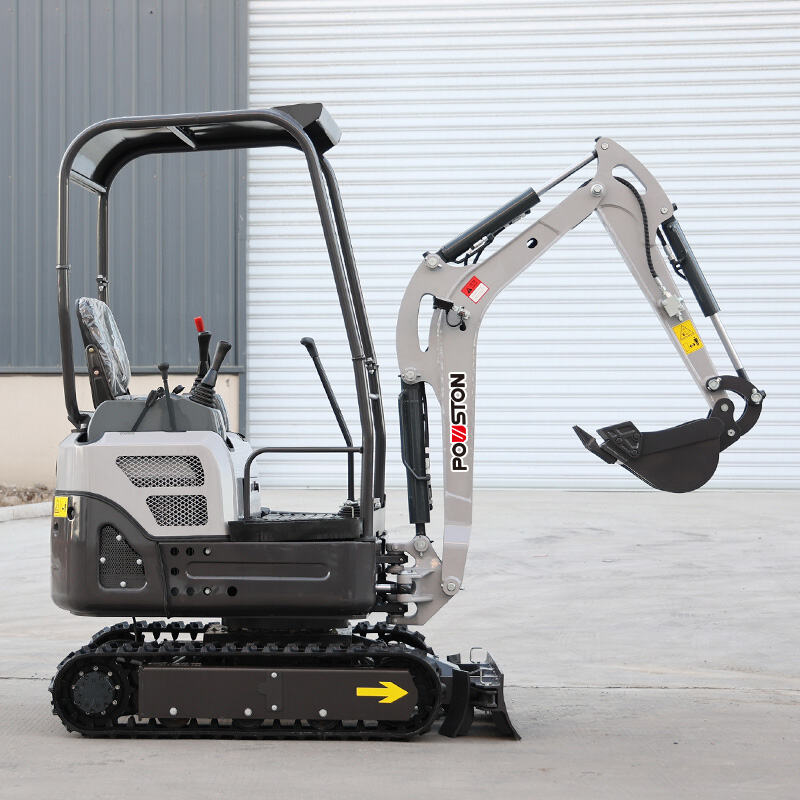

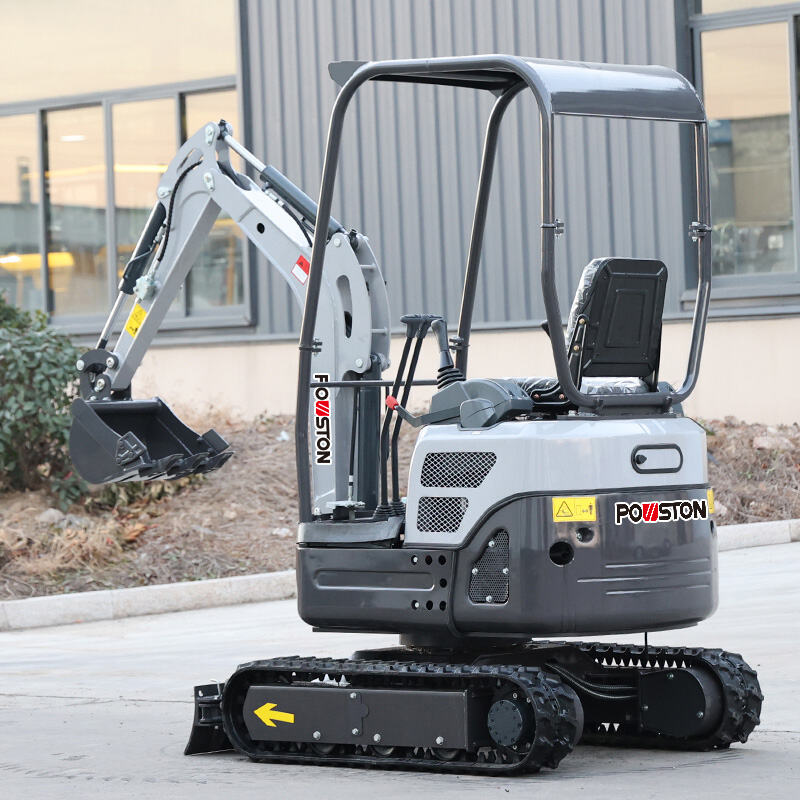

PE-16 Mini Excavator features a compact and flexible design, delivering powerful digging performance and stable operation. Ideal for gardens, farms, small construction, and landscaping tasks in tight spaces.
With robust engine and precise hydraulic system, the PE-16 Mini Excavator ensures efficient and reliable digging. Its durable components reduce maintenance costs while compact dimensions allow smooth operation in narrow yards, courtyards, and small construction sites.
| Specification | |
| Operating Weight | 1600kg |
| Engine Brand | Kubota D722 |
| Rated Power | 10.2kw |
| Digging Bucket Capacity | 0.02m³ |
| Bucket Digging Force | 6.5KN |
| Travel Speed | 2km/h |
| Maximum Climbing Ability | 30° |
| Volume Of Fuel Tank | 15.5L |
| Rotation Speed | 11r/min |
| Main Dimensions | |
| Overall Dimensions(L*W*H) | 3080*1100*2200mm |
| Bulldozer Blade Width | 1100mm |
| Bulldozer Blade Height | 216mm |
| Performance | |
| Maximum Digging Height | 3025mm |
| Maximum Unloading Height | 2025mm |
| Maximum Digging Depth | 1920mm |
| Maximum Vertical Digging Depth | 1480mm |
| Maximum Digging Radius | 3400mm |
| Maximum Ground Digging Radius | 3380mm |
| Minimum Turning Radius At The Front End | 1330mm |
| Maximum Bulldozing Height | 95mm |
| Maximum Bulldozing Depth | 295mm |
