cpd 25 electric forklift-3

Electric Forklift

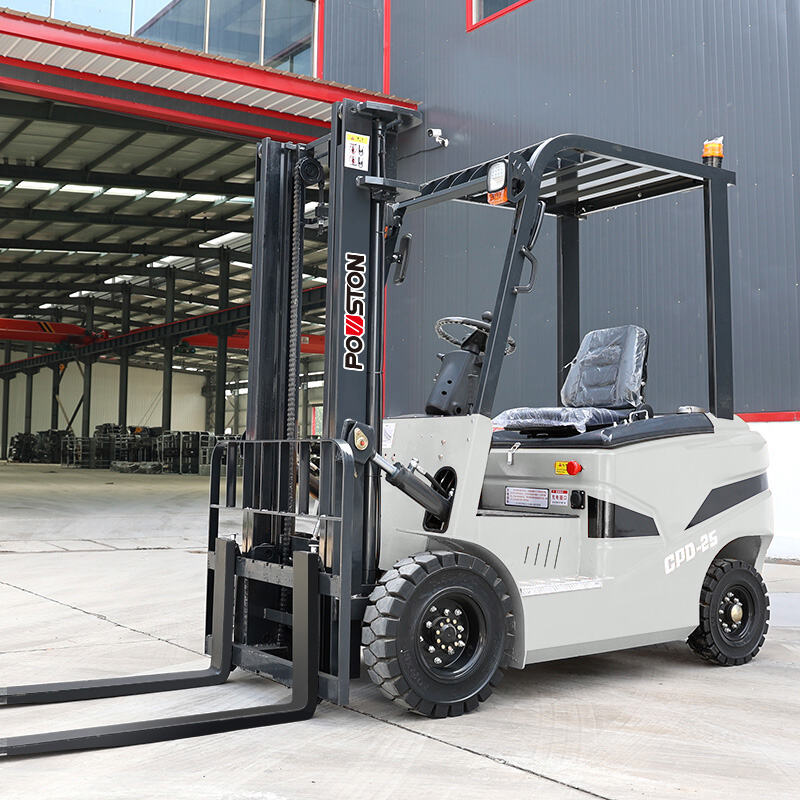

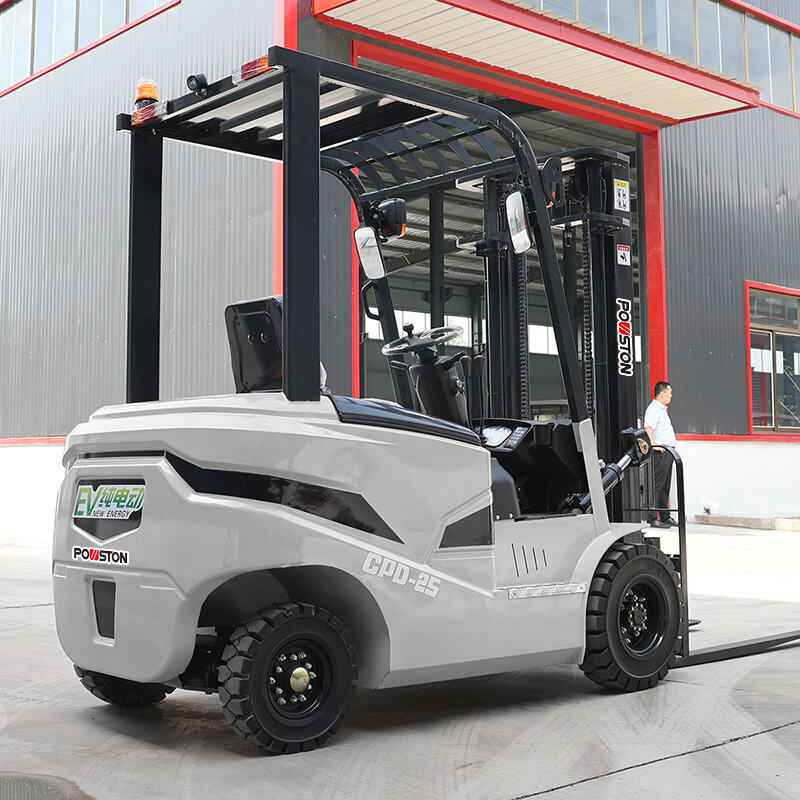

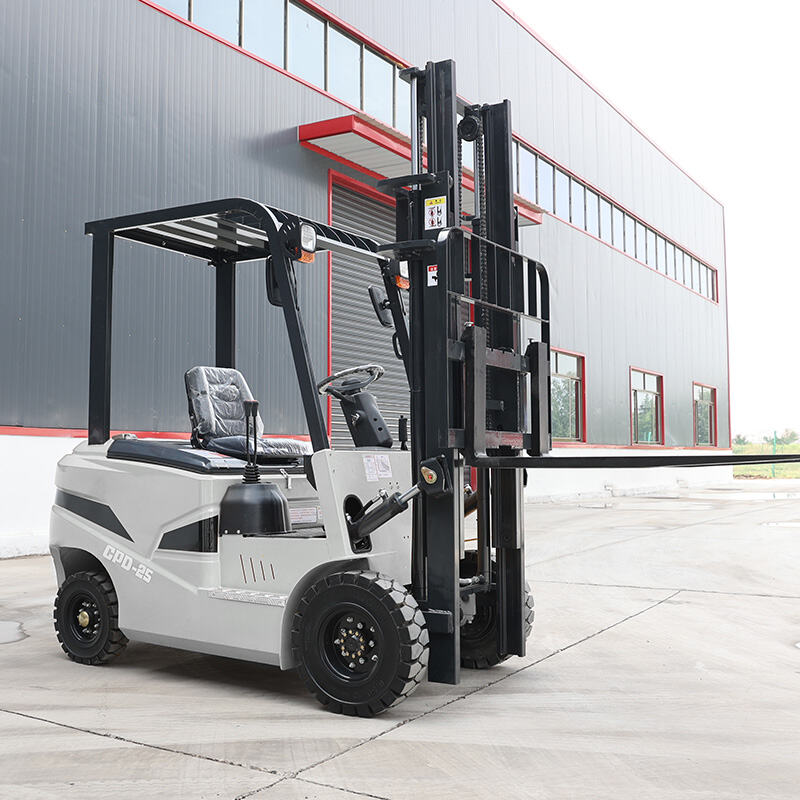

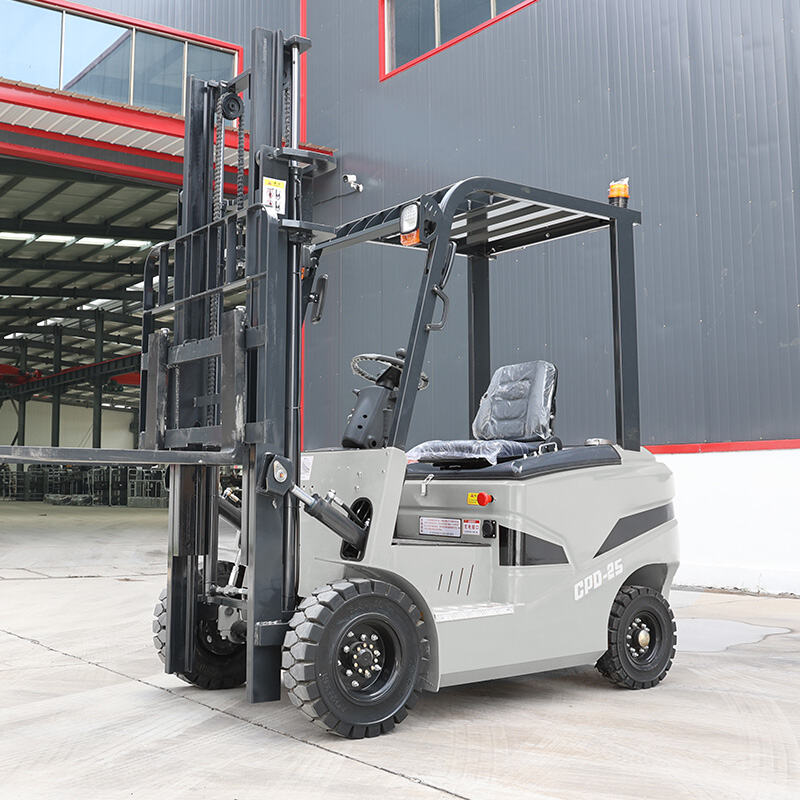

CPD-25 Electric Forklift

This 2.5 ton universal electric forklift meets diverse indoor and light outdoor handling needs with multiple load options. Battery-powered, it runs emission-free with low noise for warehouses, supermarkets and factories. Its high-capacity lithium or lead-acid battery supports full-shift continuous work. The reinforced steel frame and thick mast ensure stable 2.5 ton loading with solid anti-collision performance. User-friendly controls are easy for beginners. Fewer wearing parts reduce maintenance and operating costs, offering an energy-saving, durable and cost-effective long-term handling choice.

Inquire Now

Product Overview

Pure electric drive without tail gas pollution, suitable for food, medicine, closed warehouse and other high-environmental-standard workshops; low running noise improves working comfort.High-density battery configuration supports long-hour continuous work, avoids frequent charging interruptions, effectively improves site turnover efficiency.Thickened chassis, solid frame and thickened door frame structure, strong shock resistance, long service life, adapt to frequent daily heavy handling.

Product Overview

Product Details

Product Details
Hydraulic Cylinder
Product Details
Comfortable Seats
Product Details
Forklift Battery
Product Details
Axles
Product Details
Counterweight
Product Details
Headlights
Product Details
Tires
Product Details
Accessories

Performance & Parameters

Specification
Rated Lifting Weight 2500kg
Rated Lifting Height 3000-6000mm
Load Center Distance 500mm
Mast Tilt Angle(Forward/Backward) 12°/15°
Minimum Turning Radius 2350mm
Climbing Ability(Empty/Full) 13°/15°
Minimum Mast Height 2130mm
Free Lift Height 140mm
Maximum Mast Height 3960mm
Mast Type 12# National Standard Section Steel
Main Dimensions
Overall Dimensions(L*W*H) 2460*1210*2100mm
Standard Fork Length 1220mm
Minimum Ground Clearance Of Mast 110mm
Minimum Ground Clearance Of Frame 120mm
Overhead Guard Height 2100mm
Seat Height 970mm
Rear And Rear Wheelbase 1690mm
Tire Spacing Front Track 1020mm, Rear Track 930mm
Overhang 470mm
Performance
Front Axle Mid-Range Cast Steel Axle
Tires Front Tire 650-10, Rear Tire 500-8, Class C
Rear Axle Steel Plate Bridge
Braking Method Hydraulic Brake
Drive Motor Controller 5kw
Lift Motor Controller 5kw
Operating Voltage 60V
Standard Battery Capacity 10*140AH
Overall Weight 3050kg

Application Scenarios

Application Scenarios
Application Scenarios
Application Scenarios
The 2.5 ton general electric forklift is widely applied to all indoor closed working areas with strict environmental requirements. Main applicable scenarios include large storage warehouses, e-commerce distribution centers, supermarket logistics areas, food processing plants, pharmaceutical factories, electronic manufacturing workshops, textile factories and cold storage rooms. It also fits light outdoor flat ground operations such as indoor yards, covered cargo stations and factory finished goods stacking areas. Thanks to zero emission and low noise performance, it can safely work in airtight spaces without ventilation worries. With multiple tonnage options and stable load-bearing capacity, it handles pallet stacking, cargo loading and unloading, short-distance material transfer for light and medium-weight goods. The low maintenance cost and simple operation make it ideal for enterprises with daily continuous handling tasks, realizing energy-saving, safe and efficient all-day logistics operation.

Can Be Equipped with Assistive Devices

Can Be Equipped with Assistive Devices
  • Side Shifter
  • Side Shift Adjustment Device
  • Forks (1.52m or 1.82m)
  • Fork Sleeves
  • Flat Bucket
  • Loading Bucket
  • Tilting Grab
  • Rotator
  • Round Clamp
  • Flat Clamp
  • Paper Roll Clip
  • Ejector

FAQ

Q: Are your machines certified for international markets?
A: All our construction and handling equipment complies with mainstream international standards, ensuring reliable quality and smooth customs clearance worldwide.
Q: Can you provide customized solutions for different projects?
A: Yes, we support customized configuration, color, logo and attachments to fully match your working conditions and project requirements.
Q: How about your after-sales and technical support?
A: We provide global after-sales service, long-term spare parts supply and professional technical support to ensure stable and efficient operation of your equipment.
Q: What is your production and delivery capacity?
A: With standardized production lines and mature logistics channels, we guarantee fast lead times and safe, on-time delivery to any destination worldwide.
Q: Do you offer wholesale and dealer cooperation?
A: We warmly welcome global distributors, dealers and rental companies for long-term strategic cooperation with exclusive support policies.
